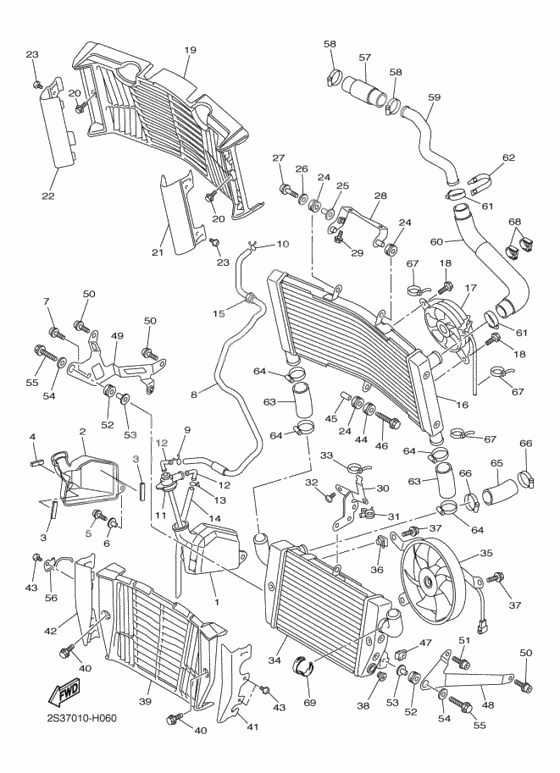

Radiator & hose
Radiator & hose
Tank, Recovery (Ref #1)
1
Part #2S3-21871-00-00
PLATE (Ref #2)
2
Part #2S3-2176E-00-00
Амортизатор (Ref #3)
3
Part #5SL-21746-00-00
Амортизатор (Ref #3)
3
Part #5SL-21746-00-00
Амортизатор (Ref #3)
3
Part #5SL-21746-00-00
Амортизатор (Ref #3)
3
Part #5SL-21746-00-00
Демпфер (Ref #4)
4
Part #5DM-28371-00-00
Болт (Ref #5)
5
Part #91314-06014-00
Втулка (Ref #6)
6
Part #90387-06170-00
Болт диагональный (Ref #7)
7
Part #90110-06302-00
Pipe 1 (Ref #8)
8
Part #2S3-21816-00-00
CLIP (Ref #9)
9
Part #90467-090A2-00
CLIP (Ref #10)
10
Part #90467-100A1-00
CLIP (Ref #10)
10
Part #90467-11106-00
CAP (Ref #11)
11
Part #2C0-21875-00-00
Колено (Ref #12)
12
Part #26H-21828-00-00
Колено (Ref #12)
12
Part #26H-21828-00-00
Колено (Ref #12)
12
Part #26H-21828-00-00
Колено (Ref #12)
12
Part #26H-21828-00-00
CLIP (Ref #13)
13
Part #90467-08021-00
Трубка (Ref #14)
14
Part #90445-08035-00
GROMMET (Ref #15)
15
Part #90480-22263-00
Radiator comp (Ref #16)
16
Part #2S3-12461-09-00
. フアン (Ref #17)
17
Part #2S3-12405-10-00
Болт (Ref #18)
18
Part #2S3-12675-00-00
Болт (Ref #18)
18
Part #2S3-12675-00-00
Болт (Ref #18)
18
Part #2S3-12675-00-00
Болт (Ref #18)
18
Part #2S3-12675-00-00
Cover 5 (Ref #19)
19
Part #2S3-1246H-00-00
BOLT (Ref #20)
20
Part #97017-06012-00
BOLT (Ref #20)
20
Part #97017-06012-00
BOLT (Ref #20)
20
Part #97017-06012-00
BOLT (Ref #20)
20
Part #97017-06012-00
Cover 1 (Ref #20)
20
Part #2S3-1246A-00-00
Cover 1 (Ref #20)
20
Part #2S3-1246A-00-00
Cover 1 (Ref #20)
20
Part #2S3-1246A-00-00
Cover 1 (Ref #20)
20
Part #2S3-1246A-00-00
Cover 2 (Ref #22)
22
Part #2S3-1246E-00-00
BOLT (Ref #23)
23
Part #90149-06298-00
BOLT (Ref #23)
23
Part #90149-06298-00
BOLT (Ref #23)
23
Part #90149-06298-00
BOLT (Ref #23)
23
Part #90149-06298-00
Втулка (Ref #25)
25
Part #90387-06039-00
Washer, Plate (Ref #26)
26
Part #90201-063J2-00
Болт (Ref #27)
27
Part #90109-06031-00
Stay 1 (Ref #28)
28
Part #2S3-2116A-00-00
Stay, radiator (Ref #30)
30
Part #2S3-12464-00-00
Скоба (Ref #31)
31
Part #90464-18246-00
Болт (Ref #32)
32
Part #92014-06012-00
BAND (Ref #33)
33
Part #1UA-82591-00-00
Radiator comp (Ref #34)
34
Part #2S3-12461-19-00
. フアン (Ref #35)
35
Part #2S3-12405-00-00
Гайка (Ref #36)
36
Part #5SL-12671-00-00
Bolt, Blower Holding (Ref #37)
37
Part #5GJ-12675-00-00
Bolt, Blower Holding (Ref #37)
37
Part #5GJ-12675-00-00
Bolt, Blower Holding (Ref #37)
37
Part #5GJ-12675-00-00
Bolt, Blower Holding (Ref #37)
37
Part #5GJ-12675-00-00
Cock, Drain (Ref #38)
38
Part #5VU-12478-00-00
Cover 6 (Ref #39)
39
Part #2S3-1246J-00-00
Cover 3 (Ref #40)
40
Part #2S3-1246F-00-00
Cover 3 (Ref #40)
40
Part #2S3-1246F-00-00
Cover 3 (Ref #40)
40
Part #2S3-1246F-00-00
Cover 3 (Ref #40)
40
Part #2S3-1246F-00-00
Cover 4 (Ref #42)
42
Part #2S3-1246G-00-00
COLLAR (Ref #45)
45
Part #90387-06086-00
Screw, With Washer (Ref #46)
46
Part #90119-06247-00
Stay, Side Cover 1 (Ref #48)
48
Part #2S3-2172E-00-00
Stay, Side Cover 2 (Ref #49)
49
Part #2S3-2174E-00-00
Bolt, Hexagon Socket Head (Ref #51)
51
Part #90110-06331-00
Guide (Ref #56)
56
Part #2S3-2171H-00-00
Hose 8 (Ref #57)
57
Part #2S3-12552-00-00
Хомут (Ref #58)
58
Part #90450-38040-00
Хомут (Ref #58)
58
Part #90450-38040-00
Хомут (Ref #58)
58
Part #90450-38040-00
Хомут (Ref #58)
58
Part #90450-38040-00
Pipe 6 (Ref #59)
59
Part #2S3-12476-00-00
Hose 1 (Ref #60)
60
Part #2S3-12576-00-00
Лента (Ref #62)
62
Part #5GV-1246E-00-00
Hose 2 (Ref #63)
63
Part #2S3-12577-00-00
Hose 2 (Ref #63)
63
Part #2S3-12577-00-00
Hose 2 (Ref #63)
63
Part #2S3-12577-00-00
Hose 2 (Ref #63)
63
Part #2S3-12577-00-00
Hose 3 (Ref #65)
65
Part #2S3-12578-00-00
CLAMP (Ref #68)
68
Part #90464-12013-00
Скоба (Ref #69)
69
Part #90464-28003-00
-
2090119-06117-00
Screw, With Washer
0Replaced by 2S3-1246A-00-00 Доступно: Нет в наличии
-
2090119-06109-00
Screw, With Washer
2Replaced by 97017-06012-00 Доступно: Нет в наличии
-
5190109-06014-00
Bolt, Hexagon Socket Head
1Replaced by 90110-06331-00 Доступно: Нет в наличии
