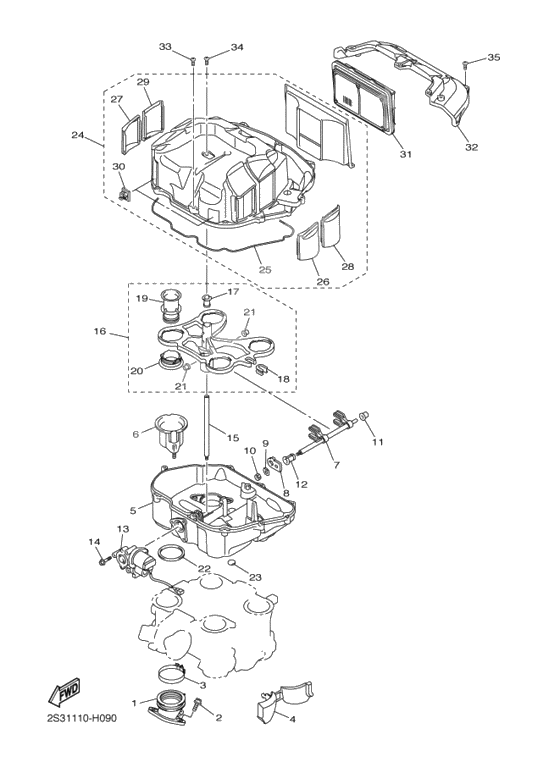

Intake
Intake
Соединение карбюратора 1 (Ref #1)
1
Part #2S3-13586-00-00
Болт диагональный (Ref #2)
2
Part #91314-06020-00
Струбцина шланга 1 (Ref #3)
3
Part #2S3-11387-00-00
Cover, Manifold (Ref #4)
4
Part #2S3-13564-00-00
Case, Air Cleaner 1 (Ref #5)
5
Part #2S3-14411-00-00
Joint Assy (Ref #6)
6
Part #2S3-1440B-00-00
Lever 1 (Ref #7)
7
Part #2S3-1445B-00-00
шатун (Ref #8)
8
Part #2S3-14548-00-00
Washer, Plate (Ref #9)
9
Part #2S3-14475-00-00
Nut, flange (Ref #10)
10
Part #9538R-06700-00
GROMMET (Ref #10)
10
Part #90381-06002-00
GROMMET (Ref #12)
12
Part #2S3-1449B-00-00
МОТОР (Ref #13)
13
Part #2S3-85870-00-00
Болт диагональный (Ref #14)
14
Part #90110-05045-00
Seperator, Oil (Ref #15)
15
Part #2S3-14434-00-00
PLATE, SPLASH (Ref #16)
16
Part #2S3-14459-00-00
GROMMET (Ref #17)
17
Part #2S3-1447B-00-00
Guide (Ref #18)
18
Part #2S3-14473-00-00
PLUG (Ref #19)
19
Part #2S3-14479-00-00
. ラバー (Ref #20)
20
Part #2S3-13631-00-00
GROMMET (Ref #21)
21
Part #90381-08001-00
GROMMET (Ref #21)
21
Part #90381-08001-00
GROMMET (Ref #21)
21
Part #90381-08001-00
GROMMET (Ref #21)
21
Part #90381-08001-00
Gasket, air cleaner (Ref #22)
22
Part #2S3-14416-00-00
PROTECTOR (Ref #23)
23
Part #2S3-1442F-00-00
Air Filter Case Comp (Ref #24)
24
Part #2S3-14408-00-00
Валик (Ref #25)
25
Part #2S3-14452-00-00
Крышка корпуса 1 (Ref #26)
26
Part #2S3-1441A-00-00
Крышка корпуса 2 (Ref #27)
27
Part #2S3-1441E-00-00
Cover, Cleaner Case 3 (Ref #28)
28
Part #2S3-1442A-00-00
Cover, Cleaner Case 4 (Ref #29)
29
Part #2S3-1442E-00-00
Фиксатор (Ref #30)
30
Part #90464-14002-00
Фильтр воздушный (Ref #31)
31
Part #2S3-14451-00-00
Канал (Ref #32)
32
Part #2S3-14437-00-00
Винт (Ref #33)
33
Part #98902-05020-00
Screw, Binding (Ref #34)
34
Part #90154-05037-00
Винт, бандаж (Ref #35)
35
Part #98902-05014-00
-
291312-06020-00
Bolt, Hexagon Socket Head
8Replaced by 91314-06020-00 Доступно: Нет в наличии
