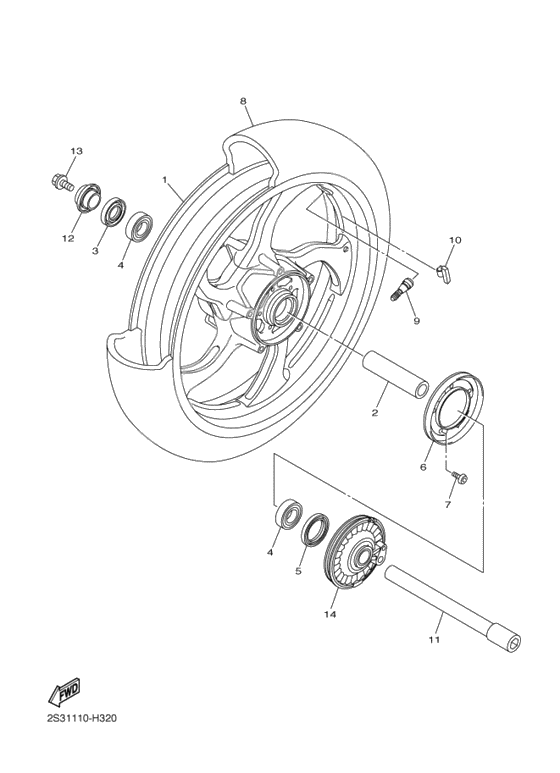

Cast Wheel, Front (Ref #1)
1
Part #2S3-25168-00-98
Шайба, подшипник (Ref #2)
2
Part #2S3-25117-00-00
Oil seal (Ref #3)
3
Part #93106-28043-00
BEARING (Ref #4)
4
Part #93306-00420-00
BEARING (Ref #4)
4
Part #93306-00420-00
BEARING (Ref #4)
4
Part #93306-00420-00
BEARING (Ref #4)
4
Part #93306-00420-00
Oil seal (Ref #5)
5
Part #93106-40027-00
Диск датчика (Ref #6)
6
Part #2S3-2517G-00-00
Болт диагональный (Ref #7)
7
Part #901-49050-10-00
Tire(120/70 R18 M/c 59V) (Ref #8)
8
Part #94112-18033-00
Valve, Rim (Tr413) (Ref #9)
9
Part #93900-00030-00
Балансир колеса (Ref #10)
10
Part #5MT-25398-10-00
Балансир колеса (Ref #10)
10
Part #5MT-25398-00-00
Балансир колеса (Ref #10)
10
Part #5MT-25398-20-00
Ось колеса (Ref #11)
11
Part #2S3-25181-00-00
GROMMET (Ref #12)
12
Part #903-87220-30-00
Болт (Ref #13)
13
Part #90105-14002-00
Housing, Sensor Front (Ref #14)
14
Part #2S3-2517A-00-00
