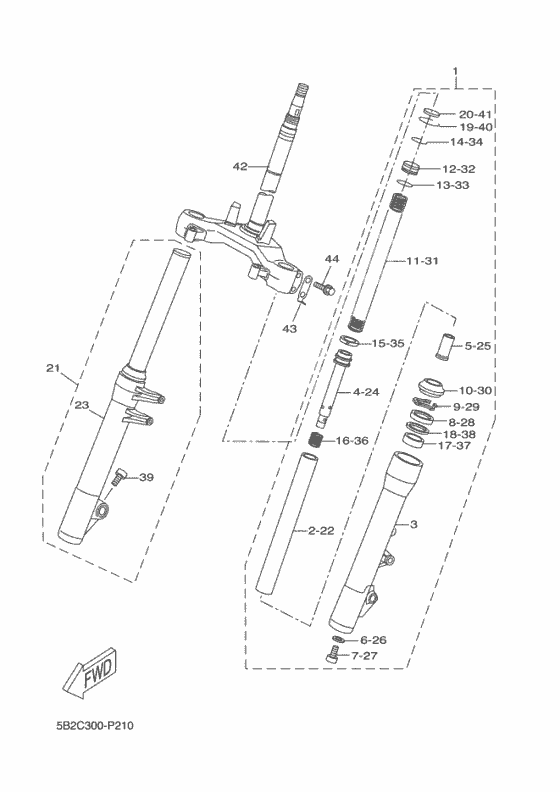

Вилка передней оси
Вилка передней оси
Front Fork Assy (L.h) (Ref #1)
1
Part #5B2-F3102-30-00
Внутренняя трубка (Ref #2)
2
Part #5B2-F3110-30-00
Труба внешняя (Ref #3)
3
Part #5B2-F3126-30-00
Cylinder Comp., Front Fork (Ref #4)
4
Part #5B2-F3170-30-00
Spacer, Oil Lock (Ref #5)
5
Part #5B2-F3166-30-00
Washer, Needle Valve (Ref #6)
6
Part #4P9-F3158-00-00
Болт диагональный (Ref #7)
7
Part #4P9-F3181-00-00
Oil seal (Ref #8)
8
Part #5B2-F3145-30-00
CLIP (Ref #9)
9
Part #5B2-F3447-30-00
PLATE, SEAL DAMPER (Ref #10)
10
Part #5B2-F3144-30-00
Spring, Front Fork (Ref #11)
11
Part #5B2-F3141-30-00
Bolt, cap (Ref #12)
12
Part #5B2-F3111-30-00
Washer, Needle Valve (Ref #13)
13
Part #5B2-F3147-30-00
RETAINER, MAGNETO BASE (Ref #14)
14
Part #5B2-F3156-30-00
Кольцо поршневое (Ref #15)
15
Part #5B2-F3157-30-00
Spring, Pilot Adjusting (Ref #16)
16
Part #5B2-F3151-30-00
Metal, Slide 1 (Ref #17)
17
Part #5B2-F3125-30-00
Washer, oil seal (Ref #18)
18
Part #5B2-F3146-30-00
Circlip (Ref #19)
19
Part #5B2-F3183-30-00
CAP (Ref #20)
20
Part #5B2-F3154-30-00
Front Fork Assy (R.h) (Ref #21)
21
Part #5B2-F3103-30-00
Труба внешняя (Ref #23)
23
Part #5B2-F3136-30-00
Bolt, Hexagon Socket Head (Ref #39)
39
Part #91314-08040-00
UNDER BRACKET COMP. (Ref #42)
42
Part #5B2-F3340-30-00
Bracket 1 (Ref #43)
43
Part #5B2-F334G-30-00
BOLT (Ref #44)
44
Part #95817-08040-00
