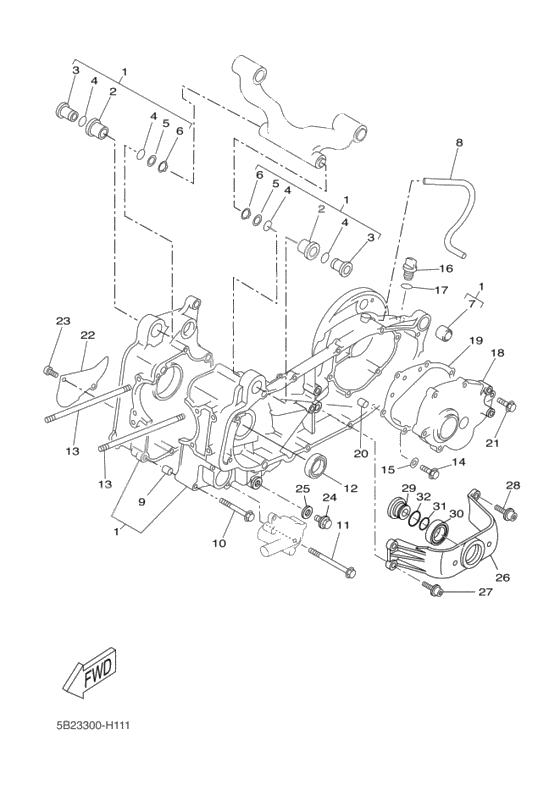

Картер
Картер
HOLDER (Ref #2)
2
Part #4HC-15378-01-00
HOLDER (Ref #2)
2
Part #4HC-15378-01-00
HOLDER (Ref #2)
2
Part #4HC-15378-01-00
HOLDER (Ref #2)
2
Part #4HC-15378-01-00
COLLAR (Ref #3)
3
Part #90387-1006J-00
COLLAR (Ref #3)
3
Part #90387-1006J-00
COLLAR (Ref #3)
3
Part #90387-1006J-00
COLLAR (Ref #3)
3
Part #90387-1006J-00
Washer, Plate (Ref #5)
5
Part #90201-162H4-00
Washer, Plate (Ref #5)
5
Part #90201-162H4-00
Washer, Plate (Ref #5)
5
Part #90201-162H4-00
Washer, Plate (Ref #5)
5
Part #90201-162H4-00
Circlip (Ref #6)
6
Part #93410-16X00-00
Circlip (Ref #6)
6
Part #93410-16X00-00
Circlip (Ref #6)
6
Part #93410-16X00-00
Circlip (Ref #6)
6
Part #93410-16X00-00
GROMMET (Ref #7)
7
Part #164-22216-00-00
HOSE (Ref #8)
8
Part #904-4513X-01-00
Втулка (Ref #9)
9
Part #91810-14X00-00
Болт (Ref #10)
10
Part #90105-06X28-00
Bolt, Flange (Ref #11)
11
Part #901-0506X-38-00
Сальник (Ref #12)
12
Part #93102-30284-00
Шпилька (Ref #13)
13
Part #90116-08591-00
Шпилька (Ref #13)
13
Part #90116-08591-00
Шпилька (Ref #13)
13
Part #90116-08591-00
Шпилька (Ref #13)
13
Part #90116-08591-00
Болт (Ref #14)
14
Part #90105-08X18-00
Прокладка (Ref #15)
15
Part #90430-08X00-00
Пробка масляная (Ref #16)
16
Part #3VL-E5363-00-00
Кольцо уплотнительное (Ref #17)
17
Part #93210-14X01-00
Cover, Crankcase 2 (Ref #18)
18
Part #1C0-E5421-00-00
Прокладка крышки картера 2 (Ref #19)
19
Part #5SE-E5461-00-00
Bolt, Flange (Ref #21)
21
Part #901-0508X-25-00
Крышка (Ref #22)
22
Part #4HC-15492-00-00
BOLT (Ref #23)
23
Part #901-1006X-26-00
プラグ,ストレート (Ref #24)
24
Part #90340-12X00-00
Washer, Needle Valve (Ref #25)
25
Part #90430-12X01-00
Bracket (Ref #26)
26
Part #1C0-E5199-10-00
Болт (Ref #27)
27
Part #90149-08X06-00
SPACER (Ref #29)
29
Part #1B9-E7649-00-00
BEARING (Ref #30)
30
Part #93306-906Y2-00
Washer, Needle Valve (Ref #31)
31
Part #93210-24X00-00
Washer, Needle Valve (Ref #32)
32
Part #93210-25X01-00
