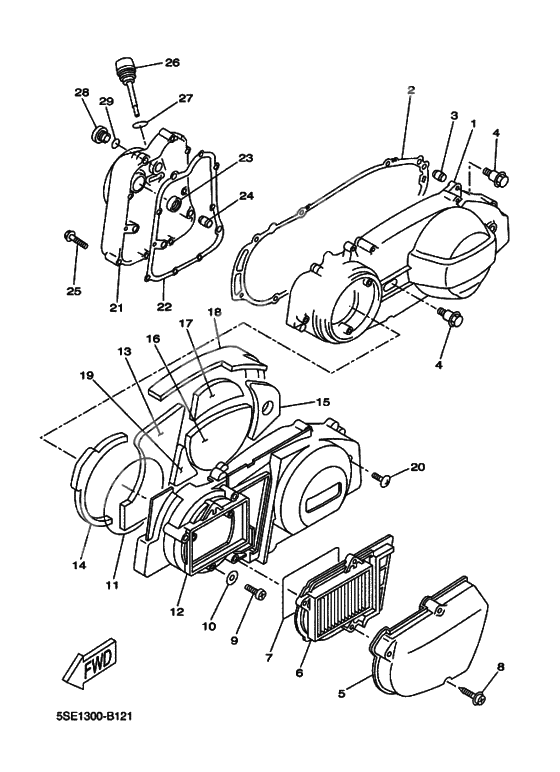

Crankcase cover ass`y (v
Crankcase cover ass`y (v
Крышка картера 1 (Ref #1)
1
Part #5SE-E5411-00-00
Gasket, Crankcase Cover 1 (Ref #2)
2
Part #1C0-E5451-00-00
Втулка (Ref #3)
3
Part #91810-14X00-00
BOLT (Ref #4)
4
Part #90109-06030-00
BOLT (Ref #4)
4
Part #90109-06030-00
BOLT (Ref #4)
4
Part #90109-06030-00
BOLT (Ref #4)
4
Part #90109-06030-00
Крышка фильтра (Ref #5)
5
Part #5GM-15471-00-00
Фильтр воздушный (Ref #6)
6
Part #5GM-15407-00-00
. SEAL (Ref #7)
7
Part #1VJ-14462-00-00
Винт (Ref #8)
8
Part #90167-05003-00
Screw, Pan Head (Ref #9)
9
Part #98517-06020-00
Washer, Plate (Ref #10)
10
Part #92907-06600-00
Уплотнение (Ref #11)
11
Part #5SE-E5472-00-00
Крышка 3 (Ref #12)
12
Part #5SE-E5431-01-00
Демпфер 1 (Ref #13)
13
Part #5SE-E5316-00-00
Демпфер 2 (Ref #14)
14
Part #5SE-E5326-00-00
Демпфер 3 (Ref #15)
15
Part #5SE-E5335-00-00
Демпфер 4 (Ref #16)
16
Part #5SE-E5337-00-00
Демпфер 5 (Ref #17)
17
Part #5SE-E5338-00-00
Демпфер (Ref #18)
18
Part #5SE-E5491-00-00
Демпфер (Ref #19)
19
Part #5SE-E5499-00-00
Bolt 1 (Ref #20)
20
Part #3KJ-15481-00-00
Cover, Cap (Ref #21)
21
Part #5B2-E5417-00-00
Прокладка (Ref #22)
22
Part #4HC-15453-00-00
Oil Seal (S7-14-27-6-Hs) (Ref #23)
23
Part #93101-14092-00
Болт (Ref #25)
25
Part #90105-06X32-00
Plug, Oil (Ref #26)
26
Part #1C0-E5363-00-00
Прокладка (Ref #27)
27
Part #93210-19X00-00
PLUG (Ref #28)
28
Part #37P-E5189-00-00
Washer, Needle Valve (Ref #29)
29
Part #93210-15X03-00
