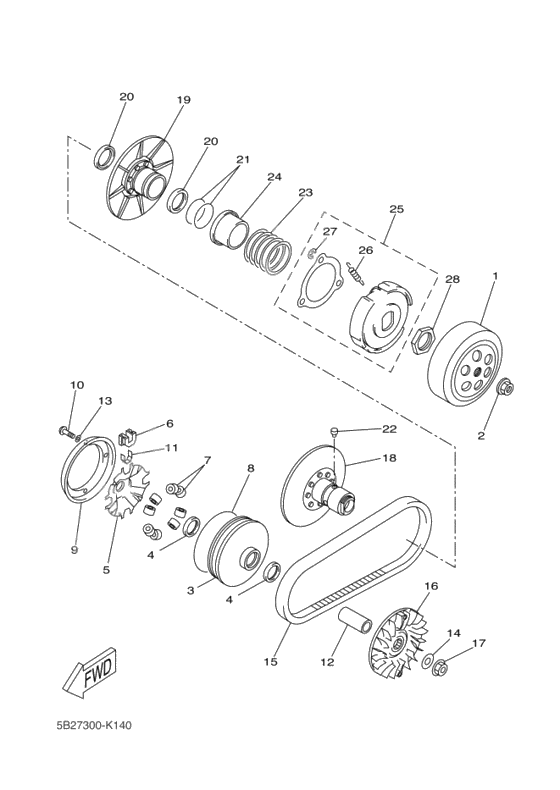

Сцепление
Сцепление
. クラツチアセンブリ (Ref #1)
1
Part #5GM-16611-00-00
Nut, flange (Ref #2)
2
Part #90179-14469-00
Primary Sliding Sheave Comp (Ref #3)
3
Part #1C0-E7606-10-00
Сальник (Ref #4)
4
Part #93101-28800-00
Сальник (Ref #4)
4
Part #93101-28800-00
Сальник (Ref #4)
4
Part #93101-28800-00
Сальник (Ref #4)
4
Part #93101-28800-00
Кулак (Ref #5)
5
Part #1C0-E7623-10-00
Уплотнение (Ref #6)
6
Part #1C0-E7653-10-00
Грузик (Ref #7)
7
Part #1C0-E7632-21-00
Прокладка (Ref #8)
8
Part #93211-17X01-00
Stopper (Ref #9)
9
Part #1C0-E7639-10-00
Болт диагональный (Ref #10)
10
Part #90110-04X00-00
Spacer 1 (Ref #11)
11
Part #1C0-E7654-10-00
Collar (Ref #12)
12
Part #90387-19X00-00
Шайба (Ref #13)
13
Part #90201-04802-00
Шайба (Ref #14)
14
Part #90201-14X02-00
V-Belt (Ref #15)
15
Part #5SE-E7641-02-00
Sheave, Primary Fixed (Ref #16)
16
Part #1C0-E7611-10-00
Secondary Fixed Sheave Comp (Ref #18)
18
Part #5GM-17660-00-00
Secondary Sliding Sheave (Ref #19)
19
Part #4HC-17670-11-00
Oil seal (Ref #20)
20
Part #93104-41119-00
Oil seal (Ref #20)
20
Part #93104-41119-00
Oil seal (Ref #20)
20
Part #93104-41119-00
Oil seal (Ref #20)
20
Part #93104-41119-00
Washer, Needle Valve (Ref #21)
21
Part #93210-43713-00
Pin, guide (Ref #22)
22
Part #4CW-17664-00-00
Spring, Compression (Ref #23)
23
Part #90501-505J6-00
SEAT,SPRING (Ref #24)
24
Part #5GM-17644-00-00
Колодки сцепления (Ref #25)
25
Part #5GM-16620-01-00
Пружина (Ref #26)
26
Part #5KD-16626-10-00
Circlip (Ref #27)
27
Part #99001-08600-00
Nut, flange (Ref #28)
28
Part #90170-36279-00
