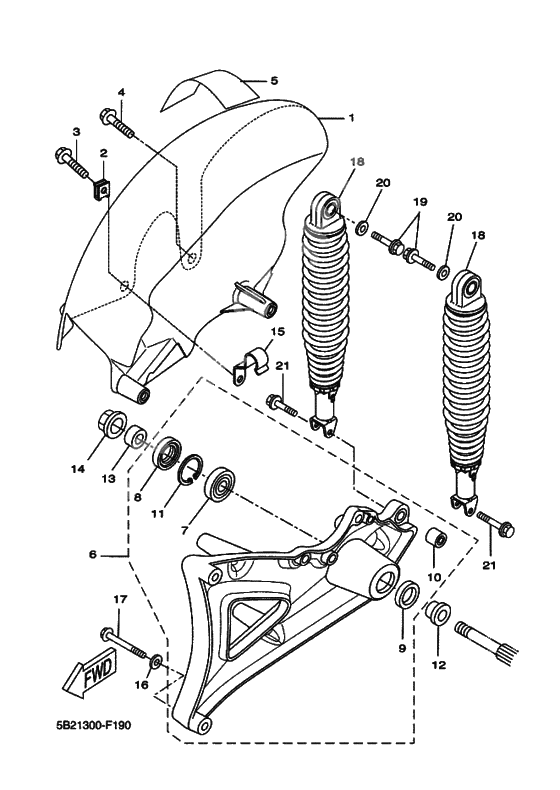

Rear arm
Rear arm
Fender, Rear (Ref #1)
1
Part #5B2-F1611-00-00
Nut, Spring (Ref #2)
2
Part #90183-06X00-00
BOLT (Ref #3)
3
Part #90105-06X01-00
BOLT (Ref #4)
4
Part #958-17080-20-00
Protector (Ref #5)
5
Part #5B2-F1652-00-00
Рычаг подвески (Ref #6)
6
Part #1C0-F2110-01-00
Крышка картера 2 (Ref #7)
7
Part #999-99999-99-00
Уплотнение 1 (Ref #8)
8
Part #1S6-F2358-00-00
GROMMET (Ref #10)
10
Part #164-22216-00-00
Кольцо стопорное (Ref #11)
11
Part #990-09475-00-00
Втулка (Ref #12)
12
Part #90387-17X02-00
Втулка (Ref #13)
13
Part #90387-17X01-00
Гайка, самоблокирующаяся (Ref #14)
14
Part #90185-14166-00
Крепление шланга 2 (Ref #15)
15
Part #5SE-F5876-00-00
Washer, Plate (Ref #16)
16
Part #90201-10X11-00
Bolt (Ref #17)
17
Part #90101-10X05-00
Амортизатор, задний (Ref #18)
18
Part #5B2-F2210-20-00
Амортизатор, задний (Ref #18)
18
Part #5B2-F2210-20-00
Амортизатор, задний (Ref #18)
18
Part #5B2-F2210-20-00
Амортизатор, задний (Ref #18)
18
Part #5B2-F2210-20-00
BOLT (Ref #19)
19
Part #90105-10X03-00
Washer, Plate (Ref #20)
20
Part #90201-105A2-00
Washer, Plate (Ref #20)
20
Part #90201-105A2-00
Washer, Plate (Ref #20)
20
Part #90201-105A2-00
Washer, Plate (Ref #20)
20
Part #90201-105A2-00
BOLT (Ref #21)
21
Part #90105-08X01-00
BOLT (Ref #21)
21
Part #90105-08X01-00
BOLT (Ref #21)
21
Part #90105-08X01-00
BOLT (Ref #21)
21
Part #90105-08X01-00
