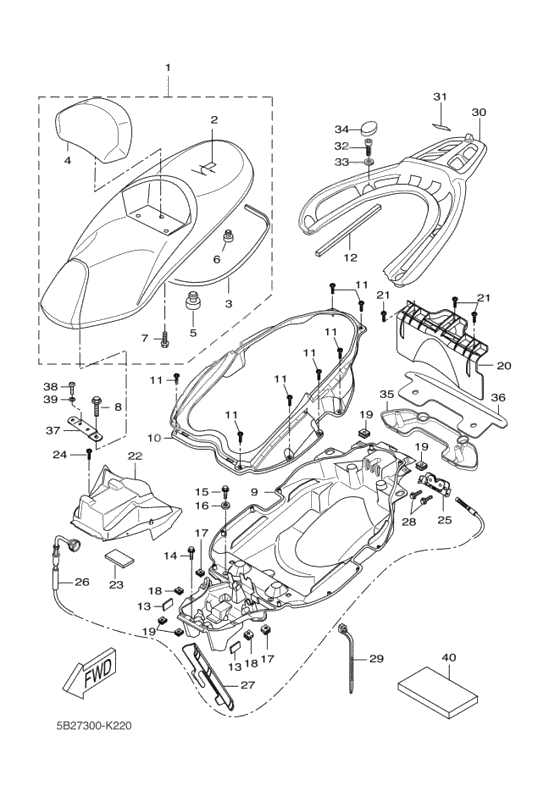

Seat
Seat
Double seat assy (Ref #1)
1
Part #5B2-F4730-80-00
Крышка сидения черная (Ref #2)
2
Part #5B2-F4731-80-00
Крышка сидения черная (Ref #2)
2
Part #5B2-F4731-90-00
Валик (Ref #3)
3
Part #5B2-F475M-00-00
SEAT BACK ASSY (Ref #4)
4
Part #5B2-F4790-90-00
Seat Back Assy (Ref #4)
4
Part #5B2-F4790-80-00
Pad, Seat (Ref #5)
5
Part #3VL-F4741-00-00
Pad, Seat (Ref #6)
6
Part #1S6-F4741-00-00
Bolt 1 (Ref #7)
7
Part #5B2-F4176-00-00
Screw, With Washer (Ref #8)
8
Part #90105-06X00-00
Box 1 (Ref #9)
9
Part #5B2-F473R-10-00
Box 2 (Ref #10)
10
Part #5B2-F473S-00-00
Амортизатор (Ref #12)
12
Part #5B2-F8371-00-00
Амортизатор (Ref #13)
13
Part #4SB-F174X-70-00
Амортизатор (Ref #13)
13
Part #4SB-F174X-70-00
Амортизатор (Ref #13)
13
Part #4SB-F174X-70-00
Амортизатор (Ref #13)
13
Part #4SB-F174X-70-00
BOLT (Ref #15)
15
Part #90105-06X02-00
Washer, Plate (Ref #16)
16
Part #90201-06X26-00
Nut, Spring (Ref #17)
17
Part #901-8305X-03-00
Nut, Spring (Ref #17)
17
Part #901-8305X-03-00
Nut, Spring (Ref #17)
17
Part #901-8305X-03-00
Nut, Spring (Ref #17)
17
Part #901-8305X-03-00
Plate, Flap Fitting 1 (Ref #20)
20
Part #5B2-F1623-01-00
Screw, Tapping (Ref #21)
21
Part #90167-05X02-00
Screw, Tapping (Ref #21)
21
Part #90167-05X02-00
Screw, Tapping (Ref #21)
21
Part #90167-05X02-00
Screw, Tapping (Ref #21)
21
Part #90167-05X02-00
. リツド (Ref #22)
22
Part #5B2-F844B-00-00
Амортизатор (Ref #23)
23
Part #4SB-F174X-00-00
Защелка сиденья (Ref #25)
25
Part #5HT-F4780-10-00
Seat Lock Cable Assy (Ref #26)
26
Part #5B2-F478D-00-00
Protector,2 (Ref #27)
27
Part #5B2-F476V-00-00
BOLT (Ref #28)
28
Part #90111-06X05-00
Хомут (Ref #29)
29
Part #4KH-H3936-01-00
Handle, Seat (Ref #30)
30
Part #5B2-F4773-10-00
Label, caution (Ref #31)
31
Part #3LD-24877-A0-00
BOLT (Ref #32)
32
Part #90111-08X05-00
Washer, Plate (Ref #33)
33
Part #90201-08X23-00
GROMMET (Ref #34)
34
Part #5B2-F4375-00-00
Protector,1 (Ref #35)
35
Part #5B2-F476U-00-00
Plate, Flap Fitting 2 (Ref #36)
36
Part #5B2-F1624-00-00
BRACKET (Ref #37)
37
Part #5B2-F1238-00-00
Screw, Pan Head (Ref #38)
38
Part #90157-05X08-00
Washer, Plate (Ref #39)
39
Part #90201-05X09-00
MANUAL,OWNER'S (Ref #40)
40
Part #5B2-F8199-E3-00
