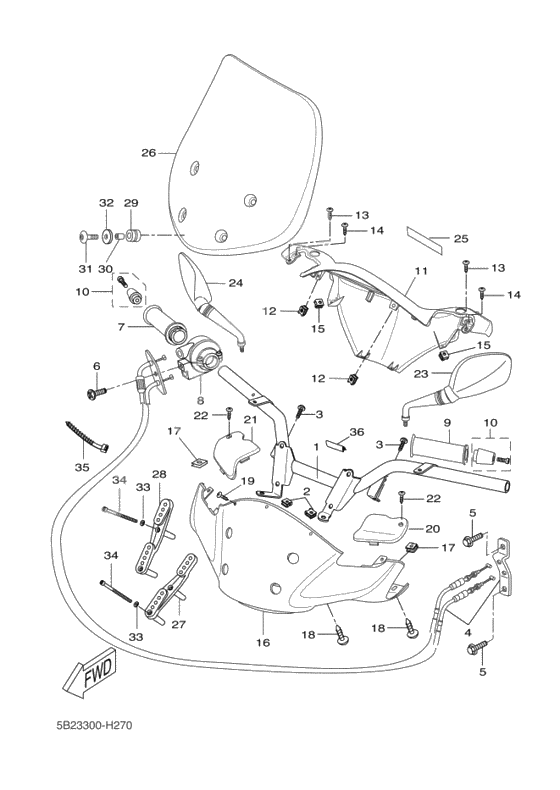

Steering handle
Steering handle
Handle Comp (Ref #1)
1
Part #5B2-F6110-00-00
Nut, Spring (Ref #2)
2
Part #901-8305X-03-00
Screw, Tapping (Ref #3)
3
Part #90167-05X02-00
Screw, Tapping (Ref #3)
3
Part #90167-05X02-00
Screw, Tapping (Ref #3)
3
Part #90167-05X02-00
Screw, Tapping (Ref #3)
3
Part #90167-05X02-00
Трос газа (Ref #4)
4
Part #5B2-F6301-00-00
Bolt, Hexagon (Ref #5)
5
Part #90101-05X01-00
Bolt, Hexagon (Ref #5)
5
Part #90101-05X01-00
Bolt, Hexagon (Ref #5)
5
Part #90101-05X01-00
Bolt, Hexagon (Ref #5)
5
Part #90101-05X01-00
Screw, Pan Head (Ref #6)
6
Part #90157-05X00-00
HANDLE, GEAR SHIFT (Ref #7)
7
Part #4YR-26240-02-00
Cap Grip Assy (Ref #8)
8
Part #1B9-F6270-00-00
Grip (Left) (Ref #9)
9
Part #4YR-26241-02-00
End Grip Assy (Ref #10)
10
Part #5B2-F620B-00-00
End Grip Assy (Ref #10)
10
Part #5B2-F620B-00-00
End Grip Assy (Ref #10)
10
Part #5B2-F620B-00-00
End Grip Assy (Ref #10)
10
Part #5B2-F620B-00-00
Cover, upper (Ref #11)
11
Part #5B2-F6213-00-00
Screw M5-16 (Ref #13)
13
Part #90167-05X01-00
Screw M5-16 (Ref #13)
13
Part #90167-05X01-00
Screw M5-16 (Ref #13)
13
Part #90167-05X01-00
Screw M5-16 (Ref #13)
13
Part #90167-05X01-00
Nut, Spring (Ref #15)
15
Part #90183-03X00-00
Nut, Spring (Ref #15)
15
Part #90183-03X00-00
Nut, Spring (Ref #15)
15
Part #90183-03X00-00
Nut, Spring (Ref #15)
15
Part #90183-03X00-00
Cover, Hand Upper 2 (Ref #16)
16
Part #5B2-F6145-00-00
Стакан соединителя (Ref #20)
20
Part #5B2-F6262-00-00
CAP (Ref #21)
21
Part #5B2-F6272-00-00
Screw, Pan Head (Ref #22)
22
Part #90167-03X07-00
Screw, Pan Head (Ref #22)
22
Part #90167-03X07-00
Screw, Pan Head (Ref #22)
22
Part #90167-03X07-00
Screw, Pan Head (Ref #22)
22
Part #90167-03X07-00
Rear View Mirror Ass Left (Ref #23)
23
Part #5B2-F6280-01-00
Rear View Mirror Ass Righ (Ref #24)
24
Part #5B2-F6290-01-00
Ярлык предупркждающий (Ref #25)
25
Part #5WW-F1568-01-00
WINDSCREEN ASSY (Ref #26)
26
Part #5B2-F8380-10-00
Bracket 4 (Ref #27)
27
Part #5B2-F612M-00-00
Bracket 5 (Ref #28)
28
Part #5B2-F612N-00-00
GROMMET (Ref #29)
29
Part #90480-13X00-00
Collar (Ref #30)
30
Part #90387-06X44-00
Bolt Hex, Socket Button (Ref #31)
31
Part #90111-06X01-00
Шайба (Ref #32)
32
Part #90201-06X02-00
Washer, Plate (Ref #33)
33
Part #90201-06X01-00
Washer, Plate (Ref #33)
33
Part #90201-06X01-00
Washer, Plate (Ref #33)
33
Part #90201-06X01-00
Washer, Plate (Ref #33)
33
Part #90201-06X01-00
Болт диагональный (Ref #34)
34
Part #90110-06X37-00
Болт диагональный (Ref #34)
34
Part #90110-06X37-00
Болт диагональный (Ref #34)
34
Part #90110-06X37-00
Болт диагональный (Ref #34)
34
Part #90110-06X37-00
CLAMP (Ref #35)
35
Part #90464-35X00-00
PROTECTOR (Ref #36)
36
Part #5SE-F117G-20-00
