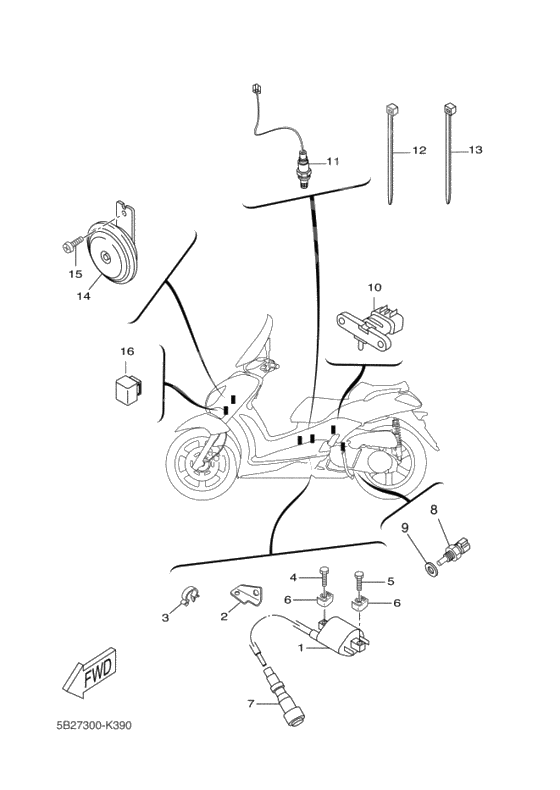

Equipo electrico
Equipo electrico
Switch, side stand (Ref #1)
1
Part #3LD-82566-50-00
Болт диагональный (Ref #2)
2
Part #90110-05X01-00
Блок управления двигателя (Ref #3)
3
Part #5B2-H591A-00-00
Screw, With Washer (Ref #4)
4
Part #90105-06X00-00
Battery assy (Ref #5)
5
Part #1B9-H2100-10-00
Battery assy (Ref #5)
5
Part #GTX-9BS00-00-00
Выпрямитель и регулятор (Ref #5)
5
Part #5BN-81960-00-00
BOLT (Ref #7)
7
Part #90105-06X02-00
Wire, Minus Lead (Ref #8)
8
Part #5B2-H2116-00-00
Wire, Plus Lead (Ref #9)
9
Part #5B2-H2115-00-00
Wire Harness Assy (Ref #10)
10
Part #5B2-H2590-20-00
Предохранитель (5A) (Ref #11)
11
Part #1B9-H2151-10-00
Предохранитель (15A) (Ref #12)
12
Part #1B9-H2151-00-00
Fuse (10A) (Ref #13)
13
Part #1B9-H2151-20-00
ワイヤリングハーネス (Ref #14)
14
Part #5SE-H3553-00-00
Реле (Ref #15)
15
Part #4YR-81940-02-00
Fuse (30A-Bl) (Ref #16)
16
Part #1AE-82151-00-00
Screw H M6-8 (Ref #17)
17
Part #90101-06X02-00
WASHER (Ref #18)
18
Part #90205-06X00-00
Relay Assy (3Gd-01) (Ref #19)
19
Part #3GD-81950-01-00
Relay Assy (5Ea-02) (Ref #20)
20
Part #5EA-81950-20-00
Держатель реле (Ref #21)
21
Part #5EA-81952-00-00
Аварийный переключатель (Ref #22)
22
Part #5VU-82576-01-00
Screw tapping (Ref #23)
23
Part #901-6703X-10-00
Key set (Ref #24)
24
Part #5B2-H2021-01-00
Крышка переключателя (Ref #25)
25
Part #5WJ-H2552-00-00
Ключ (заготовка) (Ref #26)
26
Part #5B2-H2511-09-00
BOLT (Ref #27)
27
Part #90109-06851-00
CLAMP (Ref #28)
28
Part #90465-04X03-00
