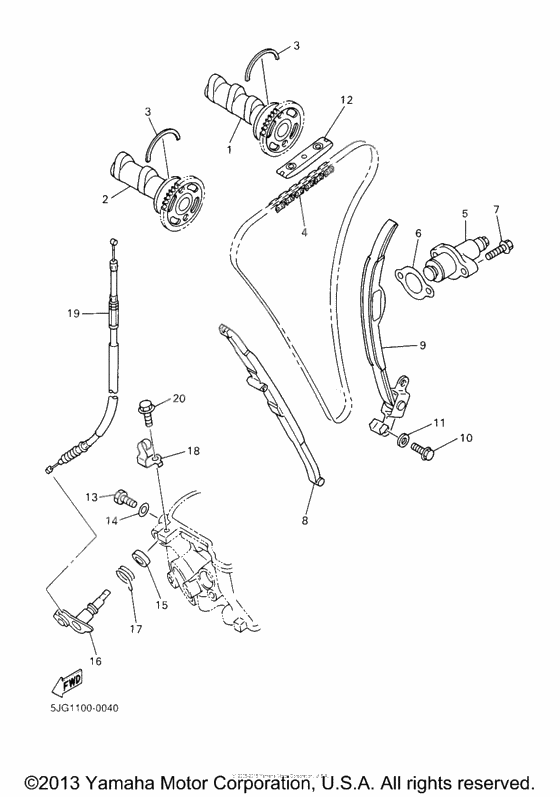

Camshaft chain
Camshaft chain
Camshaft Assy 1 (Ref #1)
1
Part #5BF-12170-10-00
Camshaft Assy 2 (Ref #2)
2
Part #5BF-12180-01-00
Стопор (полукольцо) (Ref #3)
3
Part #93440-41178-00
Стопор (полукольцо) (Ref #3)
3
Part #93440-41178-00
Стопор (полукольцо) (Ref #3)
3
Part #93440-41178-00
Стопор (полукольцо) (Ref #3)
3
Part #93440-41178-00
Цепь (Ref #4)
4
Part #94591-50120-00
Натяжитель, цепь кулака (Ref #5)
5
Part #5BE-12210-00-00
Washer, Needle Valve (Ref #6)
6
Part #4FM-12213-00-00
BOLT (Ref #7)
7
Part #90105-060A0-00
Дэмпфер цепи 1 (Ref #8)
8
Part #5BE-12251-10-00
Дэмпфер цепи 2 (Ref #9)
9
Part #5BE-12252-00-00
Screw, With Washer (Ref #10)
10
Part #97017-06016-00
Washer, Plate (Ref #11)
11
Part #92907-06600-00
Направляющая стопора 2 (Ref #12)
12
Part #5BE-12241-00-00
BOLT (Ref #13)
13
Part #90109-06418-00
Washer, Needle Valve (Ref #14)
14
Part #90430-06014-00
Oil seal (Ref #15)
15
Part #93102-12224-00
Decompression Assy (Ref #16)
16
Part #5BE-12280-10-00
Spring, Pilot Adjusting (Ref #17)
17
Part #90508-162B2-00
Кронштейн (Ref #18)
18
Part #5NL-12283-00-00
Кабель (Ref #19)
19
Part #5BE-12292-10-00
BOLT (Ref #20)
20
Part #95817-06014-00
