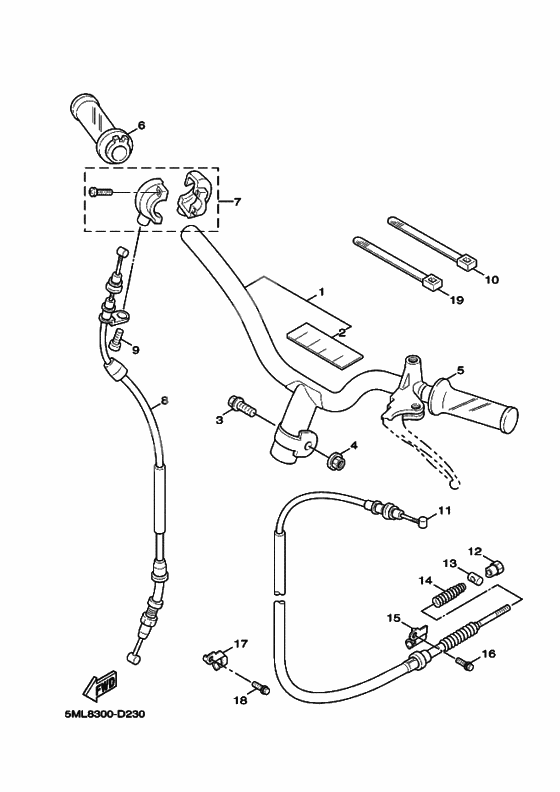

Steering handle
Steering handle
Handle Comp (Ref #1)
1
Part #5ML-X2611-20-00
Амортизатор (Ref #2)
2
Part #5ML-F6113-00-00
BOLT (Ref #3)
3
Part #90105-10036-00
Гайка, самоблокирующаяся (Ref #4)
4
Part #90185-10801-00
Grip (Ref #5)
5
Part #5ML-F6241-01-00
HANDLE, GEAR SHIFT (Ref #6)
6
Part #5ML-F6240-00-00
Cable Connector Cap Assy (Ref #7)
7
Part #5ML-F6270-01-00
Cable, Throttle 1 (Ref #8)
8
Part #5ML-F6311-01-00
Screw, Pan Head (Ref #9)
9
Part #98517-05010-00
CLAMP (Ref #10)
10
Part #90464-12812-00
Кабель тормоза (Ref #11)
11
Part #5ML-F6351-10-00
PIN (Ref #12)
12
Part #90249-12008-00
Nut, flange (Ref #12)
12
Part #90179-06411-00
Пружина компрессии (Ref #14)
14
Part #90501-16801-00
Держатель проводки (Ref #15)
15
Part #5ML-F637G-00-00
BOLT (Ref #16)
16
Part #95817-06012-00
Holder, Wire 2 (Ref #17)
17
Part #5ML-F637H-00-00
