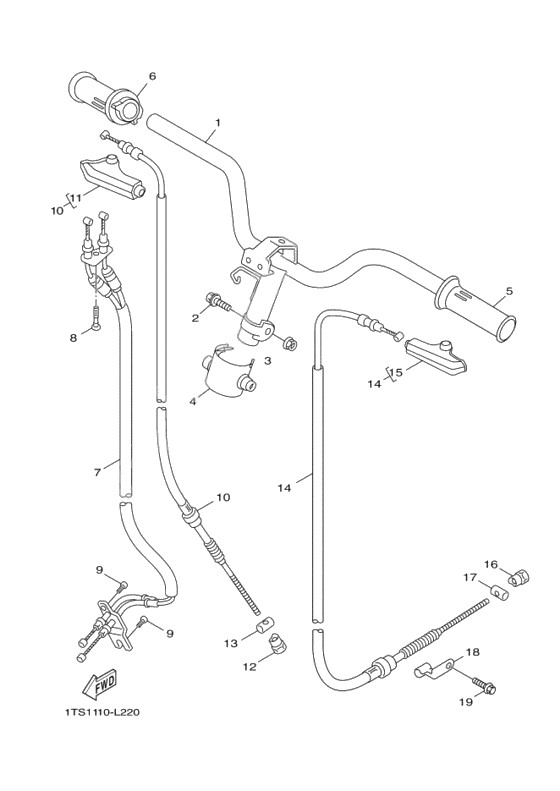

Steering handle
Steering handle
Handle Comp (Ref #1)
1
Part #5ST-F6110-00-00
BOLT (Ref #2)
2
Part #90105-10036-00
Гайка, самоблокирующаяся (Ref #3)
3
Part #90185-10801-00
Protector, Handlebar (Ref #4)
4
Part #1TS-F6124-01-00
Грипса (Ref #5)
5
Part #5ST-F6241-10-00
Рукоятка (Ref #6)
6
Part #5ST-F6240-30-00
Трос газа (Ref #7)
7
Part #1TS-F6301-00-00
Screw, Pan Head (Ref #8)
8
Part #98517-05010-00
BOLT (Ref #9)
9
Part #92017-05010-00
BOLT (Ref #9)
9
Part #92017-05010-00
BOLT (Ref #9)
9
Part #92017-05010-00
BOLT (Ref #9)
9
Part #92017-05010-00
Wire, Brake 1 (Ref #10)
10
Part #13P-F6341-20-00
Wire, Brake 1 (Ref #10)
10
Part #13P-F6341-20-00
Wire, Brake 1 (Ref #10)
10
Part #13P-F6341-20-00
Wire, Brake 1 (Ref #10)
10
Part #13P-F6341-20-00
カバ−，ハンドルレバ− ２ (Ref #11)
11
Part #13P-F637A-00-00
Nut, flange (Ref #12)
12
Part #90179-06411-00
PIN (Ref #13)
13
Part #90249-12008-00
Cable, Brake (Ref #14)
14
Part #13P-F6351-00-00
Cable, Brake (Ref #14)
14
Part #13P-F6351-00-00
Cable, Brake (Ref #14)
14
Part #13P-F6351-00-00
Cable, Brake (Ref #14)
14
Part #13P-F6351-00-00
カバ−，ハンドルレバ− １ (Ref #15)
15
Part #13P-F6372-00-00
HOLDER (Ref #18)
18
Part #5ST-F639F-00-00
BOLT (Ref #19)
19
Part #95817-06016-00
