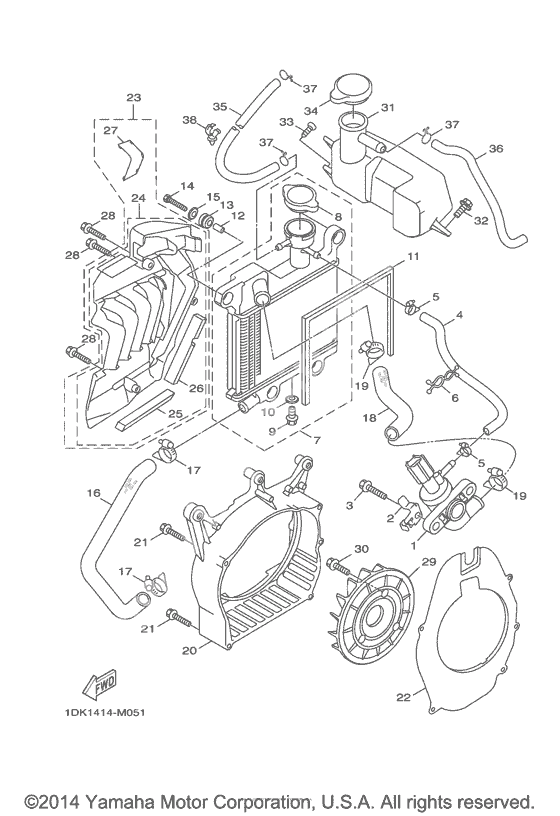

Радиатор & Патрубок системы охлаждения
Радиатор & Патрубок системы охлаждения
Thermostat assy (Ref #1)
1
Part #52S-12410-00-00
Stay (Ref #2)
2
Part #1DK-E2443-00-00
BOLT (Ref #3)
3
Part #95022-06020-00
Pipe, Breather (Ref #4)
4
Part #52S-E2463-00-00
CLIP (Ref #5)
5
Part #90467-08092-00
CLIP (Ref #5)
5
Part #90467-08092-00
CLIP (Ref #5)
5
Part #90467-08092-00
CLIP (Ref #5)
5
Part #90467-08092-00
Clamp (Ref #6)
6
Part #904-64268-01-00
Radiator Assy (Ref #7)
7
Part #1DK-E240A-00-00
Cap, radiator (Ref #8)
8
Part #1DK-E2462-00-00
Bolt (Ref #9)
9
Part #1DK-E2615-00-00
O-Ring (Ref #10)
10
Part #1DK-E2843-00-00
Damper, Air Shroud 2 (Ref #11)
11
Part #1DK-E2659-01-00
Collar (Ref #12)
12
Part #903-87088-25-00
Grommet (Ref #13)
13
Part #904-80168-05-00
Bolt, Hexagon (Ref #14)
14
Part #97014-06035-00
Washer, Plate (Ref #15)
15
Part #90201-06085-00
Pipe 1 (Ref #16)
16
Part #1DK-E2481-00-00
Зажим шланга (Ref #17)
17
Part #904-50278-04-00
Зажим шланга (Ref #17)
17
Part #904-50278-04-00
Зажим шланга (Ref #17)
17
Part #904-50278-04-00
Зажим шланга (Ref #17)
17
Part #904-50278-04-00
Pipe 2 (Ref #18)
18
Part #1DK-E2482-00-00
Case, Fan (Ref #20)
20
Part #1DK-E2621-00-00
Болт (Ref #21)
21
Part #95022-06055-00
Болт (Ref #21)
21
Part #95022-06055-00
Болт (Ref #21)
21
Part #95022-06055-00
Болт (Ref #21)
21
Part #95022-06055-00
Plate (Ref #22)
22
Part #52S-E2681-00-00
Cover, radiator (Ref #23)
23
Part #2SW-WE246-00-00
Cover, radiator (Ref #24)
24
Part #2SW-XE246-00-00
Damper, Air Shroud 3 (Ref #25)
25
Part #1DK-E2668-00-00
Damper, Air Shroud 4 (Ref #26)
26
Part #1DK-E2669-00-00
Cover 5 (Ref #27)
27
Part #2SW-E246H-00-00
Fan (Ref #29)
29
Part #52S-E2611-00-00
BOLT (Ref #30)
30
Part #95817-06016-00
Tank, Recovery (Ref #31)
31
Part #1DK-F1871-00-00
Болт (Ref #32)
32
Part #90109-06086-00
Screw, Truss Head Tapping (Ref #33)
33
Part #97707-50012-00
CAP (Ref #34)
34
Part #5CA-F1815-00-00
Hose 1 (Ref #35)
35
Part #1DK-F247A-00-00
Hose 2 (Ref #36)
36
Part #1DK-F247B-00-00
Скоба (Ref #38)
38
Part #90464-17003-00
