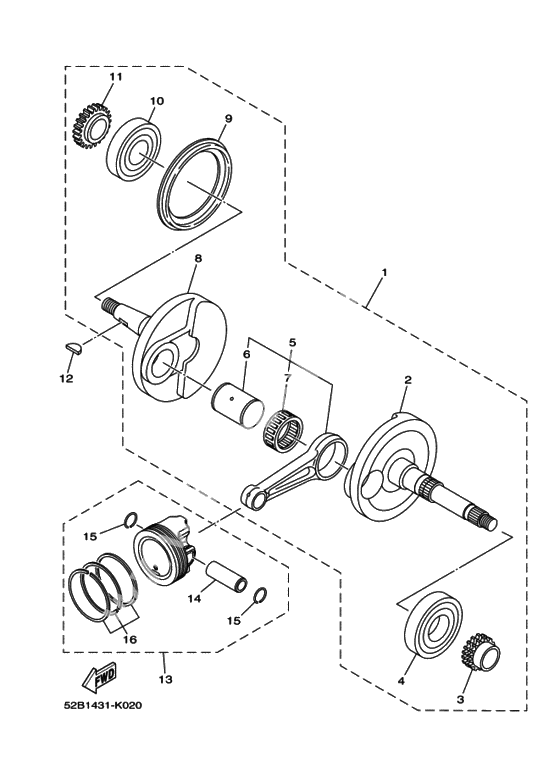

Коленчатый вал & Поршень
Коленчатый вал & Поршень
Crankshaft Assy (Ref #1)
1
Part #52B-WE140-10-00
Crank 1 (Ref #2)
2
Part #52B-E1412-00-00
Sprocket, Cam Chain (Ref #3)
3
Part #52B-E1549-00-00
Bearing (Ref #4)
4
Part #93306-305YG-00
шатун (Ref #5)
5
Part #5D9-E1650-00-00
Pin, Crank 1 (Ref #6)
6
Part #5MX-E1681-10-00
Bearing (Ref #7)
7
Part #93310-528YA-00
Crank 2 (Ref #8)
8
Part #52B-E1422-00-00
Cover, Rotor Filter (Ref #9)
9
Part #5VD-E3452-00-00
Bearing (Ref #10)
10
Part #93306-372Y6-00
Gear, Pump Drive (Ref #11)
11
Part #4D0-E3324-00-00
KEY,WOODRUFF (Ref #12)
12
Part #90280-03017-00
Piston Assy (0.25Mm O/s) (Ref #13)
13
Part #52B-E1630-10-00
Палец поршня (Ref #14)
14
Part #4YS-E1633-00-00
Кольцо стопорное (Ref #15)
15
Part #93450-14088-00
Кольцо стопорное (Ref #15)
15
Part #93450-14088-00
Кольцо стопорное (Ref #15)
15
Part #93450-14088-00
Кольцо стопорное (Ref #15)
15
Part #93450-14088-00
Piston Ring Set (Std) (Ref #16)
16
Part #52B-E1603-10-00
