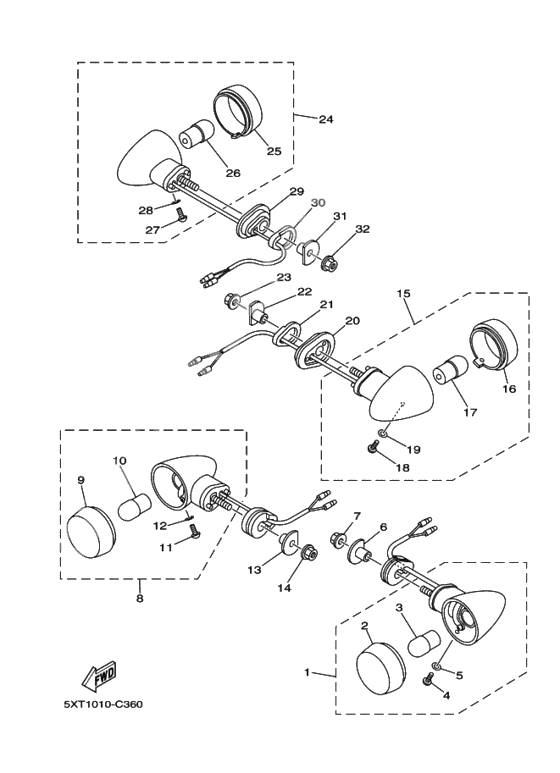

Flasher Light
Flasher Light
Front Flasher Light Assy 1 (Ref #1)
1
Part #5XT-83310-00-00
Lens, Flasher (Ref #2)
2
Part #5UY-83312-10-00
Bulb, Flasher (12V-10W) (Ref #3)
3
Part #5XT-83311-00-00
Screw, Lens Fitting (Ref #4)
4
Part #5UY-83333-00-00
WASHER (Ref #5)
5
Part #5UY-8333F-00-00
Collar, Flasher 1 (Ref #6)
6
Part #5XT-83316-20-00
Nut, flange (Ref #7)
7
Part #95707-06500-00
Front Flasher Light Assy 2 (Ref #8)
8
Part #5XT-83320-00-00
Lens, Flasher (Ref #9)
9
Part #5UY-83312-00-00
Rear Flasher Light Assy 1 (Ref #15)
15
Part #5XT-83330-00-00
Damper, Flasher 1 (Ref #20)
20
Part #5XT-83321-00-00
Damper, Flasher (Ref #21)
21
Part #5XT-83341-00-00
Collar, Flasher 1 (Ref #22)
22
Part #5XT-83316-00-00
Rear Flasher Light Assy 2 (Ref #24)
24
Part #5XT-83340-00-00
Damper, Flasher 1 (Ref #29)
29
Part #5XT-83321-10-00
