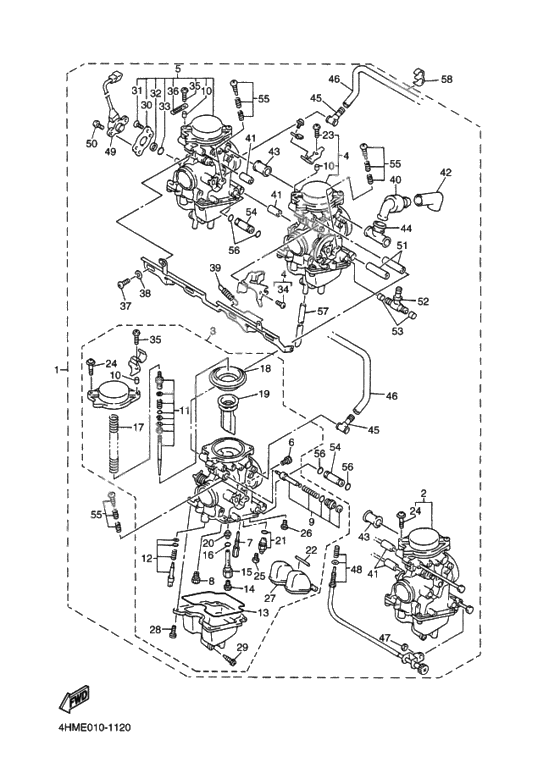

Carburator
Carburator
CARBURETOR ASSY (Ref #1)
1
Part #4HM-14900-40-00
CARBURETOR ASSY (Ref #2)
2
Part #4HM-14901-40-00
CARBURETOR ASSY (Ref #3)
3
Part #4HM-14902-40-00
CARBURETOR ASSY (Ref #4)
4
Part #4HM-14903-40-00
CARBURETOR ASSY (Ref #4)
4
Part #4HM-14903-40-00
CARBURETOR ASSY (Ref #4)
4
Part #4HM-14903-40-00
CARBURETOR ASSY (Ref #4)
4
Part #4HM-14903-40-00
CARBURETOR ASSY (Ref #5)
5
Part #4HM-14904-40-00
Jet, main (#125) (Ref #6)
6
Part #1HX-14231-25-00
Jet, Pilot (# 12.5) (Ref #7)
7
Part #4HM-14142-12-00
Jet, Main (# 40) (Ref #8)
8
Part #3G2-14231-08-00
Starter Set (Ref #9)
9
Part #4HM-1410A-10-00
Needle set (Ref #11)
11
Part #4HM-1490J-10-00
Needle set (Ref #11)
11
Part #4HM-1490J-20-00
Pilot Screw Set (Ref #12)
12
Part #4SV-14105-00-00
Washer, Needle Valve (Ref #13)
13
Part #5DM-14561-00-00
Жиклер главный (100) (Ref #14)
14
Part #3G2-14231-20-00
Жиклер главный (95) (Ref #14)
14
Part #3G2-14231-19-00
HOLDER (Ref #15)
15
Part #4HM-14261-00-00
Washer, Needle Valve (Ref #16)
16
Part #583-14561-00-00
Пружина диафрагмы (Ref #17)
17
Part #5DM-14933-00-00
DIAPHRAGM ASSY (Ref #18)
18
Part #5DM-14940-00-00
Клапан дросселя 1 (Ref #19)
19
Part #5DM-14112-00-00
Nozzle, Main (Ref #20)
20
Part #5DM-14141-39-00
Needle Valve Set (Ref #21)
21
Part #1P0-14107-20-00
Штифт плавающий (Ref #22)
22
Part #127-14186-00-00
Screw, Pan Head (Ref #23)
23
Part #98507-05016-00
BOLT (Ref #24)
24
Part #4KM-14216-00-00
BOLT (Ref #24)
24
Part #4KM-14216-00-00
BOLT (Ref #24)
24
Part #4KM-14216-00-00
BOLT (Ref #24)
24
Part #4KM-14216-00-00
Screw, Pan Head (Ref #25)
25
Part #98507-04008-00
BOLT (Ref #26)
26
Part #1FN-14565-00-00
. FLOAT (Ref #27)
27
Part #5DM-14985-00-00
Screw, Pan Head (Ref #28)
28
Part #98507-04010-00
Заглушка дренажная (Ref #29)
29
Part #4KP-14191-00-00
BRACKET (Ref #30)
30
Part #5EA-14867-00-00
Screw, Pan Head (Ref #31)
31
Part #98707-04008-00
Washer, Plate (Ref #32)
32
Part #4KG-14285-00-00
Валик (Ref #33)
33
Part #256-14997-00-00
Screw, Pan Head (Ref #34)
34
Part #98517-05010-00
Screw, Pan Head (Ref #34)
34
Part #97885-05010-00
Screw, Pan Head (Ref #35)
35
Part #98507-05014-00
Screw, Pan Head (Ref #35)
35
Part #98507-05014-00
Screw, Pan Head (Ref #35)
35
Part #98507-05014-00
Screw, Pan Head (Ref #35)
35
Part #98507-05014-00
PLATE (Ref #36)
36
Part #3UH-14146-00-00
BOLT (Ref #37)
37
Part #5DM-14565-00-00
PACKING (Ref #38)
38
Part #4NK-14327-00-00
Spring, Pilot Adjusting (Ref #39)
39
Part #5DM-14935-00-00
Net, Filter 2 (Ref #40)
40
Part #5DM-24515-00-00
. . VALVE, CHECK (Ref #42)
42
Part #4HM-14396-00-00
Pipe 1 (Ref #43)
43
Part #5DM-14348-00-00
Pipe 1 (Ref #43)
43
Part #5DM-14348-00-00
Pipe 1 (Ref #43)
43
Part #5DM-14348-00-00
Pipe 1 (Ref #43)
43
Part #5DM-14348-00-00
Pipe (Ref #44)
44
Part #5DM-14396-00-00
HOSE (Ref #45)
45
Part #4XV-90445-00-00
HOSE (Ref #45)
45
Part #4XV-90445-00-00
HOSE (Ref #45)
45
Part #4XV-90445-00-00
HOSE (Ref #45)
45
Part #4XV-90445-00-00
HOSE (Ref #46)
46
Part #4HM-90445-00-00
HOSE (Ref #46)
46
Part #4HM-90445-00-00
HOSE (Ref #46)
46
Part #4HM-90445-00-00
HOSE (Ref #46)
46
Part #4HM-90445-00-00
WASHER (Ref #47)
47
Part #4HM-14285-00-00
Throttle Screw Set (Ref #48)
48
Part #4HM-14103-10-00
Throttle Position Sensor Assy (Ref #49)
49
Part #4HM-85885-20-00
BOLT (Ref #50)
50
Part #4WM-14565-00-00
Pipe (Ref #51)
51
Part #5EA-14996-00-00
NIPPLE (Ref #52)
52
Part #5DM-14251-00-00
Валик (Ref #53)
53
Part #3EN-14997-00-00
. . VALVE, CHECK (Ref #54)
54
Part #4HM-14148-00-00
. . VALVE, CHECK (Ref #54)
54
Part #4HM-14148-00-00
. . VALVE, CHECK (Ref #54)
54
Part #4HM-14148-00-00
. . VALVE, CHECK (Ref #54)
54
Part #4HM-14148-00-00
Pipe (Ref #57)
57
Part #3JE-14197-00-00
Зажим (Ref #58)
58
Part #90464-09M31-00
-
214KM-14107-20-00
Needle Valve Set
1Replaced by 1P0-14107-20-00 Доступно: Нет в наличии
-
3198701-04008-00
Screw, Pan Head
2Replaced by 98707-04008-00 Доступно: Нет в наличии
-
553EN-1490K-00-00
Stop Screw Set
3Replaced by 4KM-1490K-00-00 Доступно: Нет в наличии
