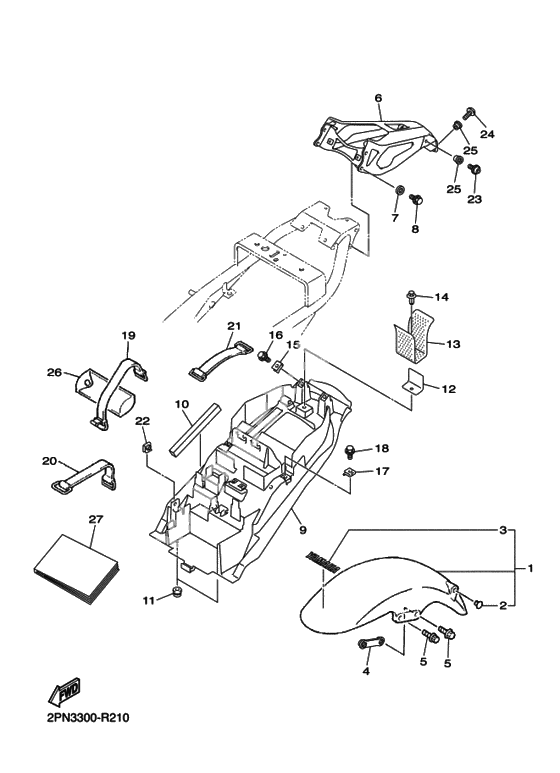

Крыло
Крыло
Front Fender Assy (Ref #1)
1
Part #4KG-Y2151-71-33
Plug(2Gu) (Ref #2)
2
Part #90338-12192-00
Emblem (Ref #3)
3
Part #99241-00080-00
Крепление крыла (Ref #4)
4
Part #5UX-21512-00-00
BOLT (Ref #5)
5
Part #95024-06025-00
BOLT (Ref #5)
5
Part #95024-06025-00
BOLT (Ref #5)
5
Part #95024-06025-00
BOLT (Ref #5)
5
Part #95024-06025-00
Cover, Rear Fender (Ref #6)
6
Part #2PN-21651-00-00
Washer, Plate (Ref #7)
7
Part #92907-06200-00
Болт (Ref #8)
8
Part #901-05061-36-00
Fender, Rear (Ref #9)
9
Part #2PN-21611-00-00
Damper, Plate 4 (Ref #10)
10
Part #3C5-2414N-00-00
Защита (Ref #11)
11
Part #5UX-21652-00-00
GROMMET (Ref #11)
11
Part #90480-13014-00
Protecter, Wire Harness (Ref #13)
13
Part #5UX-82589-00-00
Заклёпка (Ref #14)
14
Part #902-69070-76-00
Nut, Spring (Ref #15)
15
Part #90183-06069-00
BOLT (Ref #16)
16
Part #95817-06016-00
Ремень (Ref #19)
19
Part #3TJ-82131-00-00
Ремень (Ref #20)
20
Part #561-24173-00-00
Обвязка, аккумулятор (Ref #21)
21
Part #7H3-82131-00-00
Болт (Ref #23)
23
Part #90111-06095-00
Втулка (Ref #25)
25
Part #90387-06107-00
Втулка (Ref #25)
25
Part #90387-06107-00
Втулка (Ref #25)
25
Part #90387-06107-00
Втулка (Ref #25)
25
Part #90387-06107-00
Tool Kit (Ref #26)
26
Part #2PN-28100-00-00
MANUAL,OWNER'S (Ref #27)
27
Part #2PN-28199-G1-00
MANUAL,OWNER'S (Ref #27)
27
Part #2PN-28199-F1-00
MANUAL,OWNER'S (Ref #27)
27
Part #2PN-28199-E1-00
MANUAL,OWNER'S (Ref #27)
27
Part #2PN-F8199-M1-00
MANUAL,OWNER'S (Ref #27)
27
Part #2PN-F8199-D1-00
MANUAL,OWNER'S (Ref #27)
27
Part #2PN-F8199-P1-00
MANUAL,OWNER'S (Ref #27)
27
Part #2PN-28199-S1-00
MANUAL,OWNER'S (Ref #27)
27
Part #2PN-28199-H1-00
