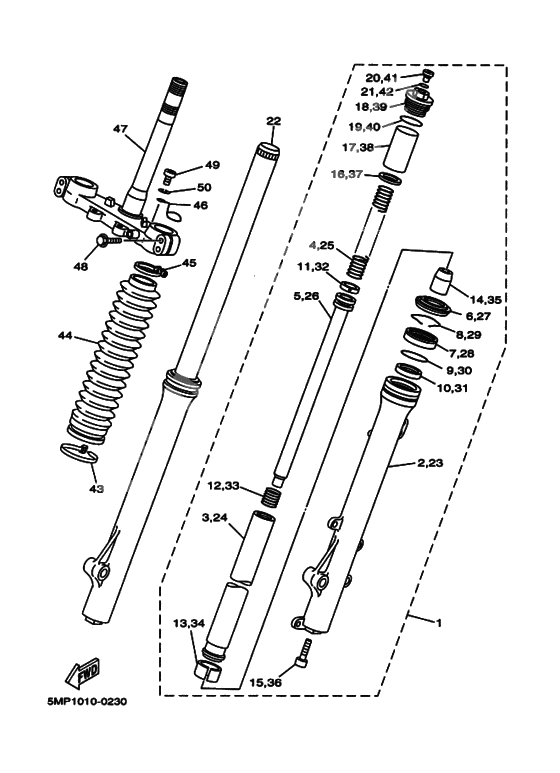

Front fork
Front fork
Front Fork Assy (L.h) (Ref #1)
1
Part #4JG-23102-40-00
Tube, Outer (L.h) (Ref #2)
2
Part #4JG-23126-00-00
Inner Tube Comp.1 (Ref #3)
3
Part #4JG-23110-01-00
Spring, Pilot Adjusting (Ref #4)
4
Part #4JG-23351-00-00
Piston, Front Fork (Ref #5)
5
Part #4JG-23171-01-00
PLATE, SEAL DAMPER (Ref #6)
6
Part #1KH-23144-00-00
Oil seal (Ref #7)
7
Part #1KH-23145-00-00
Ring, Snap (Ref #8)
8
Part #34X-23156-00-00
Washer, Needle Valve (Ref #9)
9
Part #1KH-23147-00-00
Металическая вставка 1 (Ref #10)
10
Part #34X-23125-00-00
Ring, Piston (Ref #11)
11
Part #4JG-23157-00-00
Spring, Pilot Adjusting (Ref #12)
12
Part #34X-23151-00-00
Metal, Slide 2 (Ref #13)
13
Part #34X-23135-00-00
Spacer, Oil Lock (Ref #14)
14
Part #4JG-23166-00-00
Болт диагональный (Ref #15)
15
Part #3M7-23181-00-00
Уплотнение пружины верх. (Ref #16)
16
Part #34X-23142-00-00
Washer, Needle Valve (Ref #17)
17
Part #4JG-23118-00-00
Bolt, cap (Ref #18)
18
Part #4JG-23111-00-00
Washer, Needle Valve (Ref #19)
19
Part #4JG-23114-00-00
Plug, Drain (Ref #20)
20
Part #4JG-23119-00-00
O-RING (Ref #21)
21
Part #4JG-23147-00-00
Front Fork Assy (R.h) (Ref #22)
22
Part #4JG-23103-01-00
Труба внешняя (Ref #23)
23
Part #34X-23136-00-38
BAND (Ref #43)
43
Part #3RW-23192-00-00
Ботинок (Ref #44)
44
Part #4JG-23191-20-00
BAND (Ref #45)
45
Part #34X-23192-00-00
Направляющая кабеля (Ref #46)
46
Part #10V-2331E-02-00
UNDER BRACKET COMP. (Ref #47)
47
Part #4JG-23340-00-00
BOLT (Ref #48)
48
Part #95024-08035-00
Screw, Pan Head (Ref #49)
49
Part #98517-06012-00
Washer, Plate (Ref #50)
50
Part #92995-06100-00
Washer, Plate (Ref #50)
50
Part #92907-06100-00
-
2334X-23136-00-00
Труба внешняя
1Replaced by 34X-23136-00-38 Доступно: Нет в наличии
-
4998506-06012-00
Screw, Pan Head
1Replaced by 98517-06012-00 Доступно: Нет в наличии
