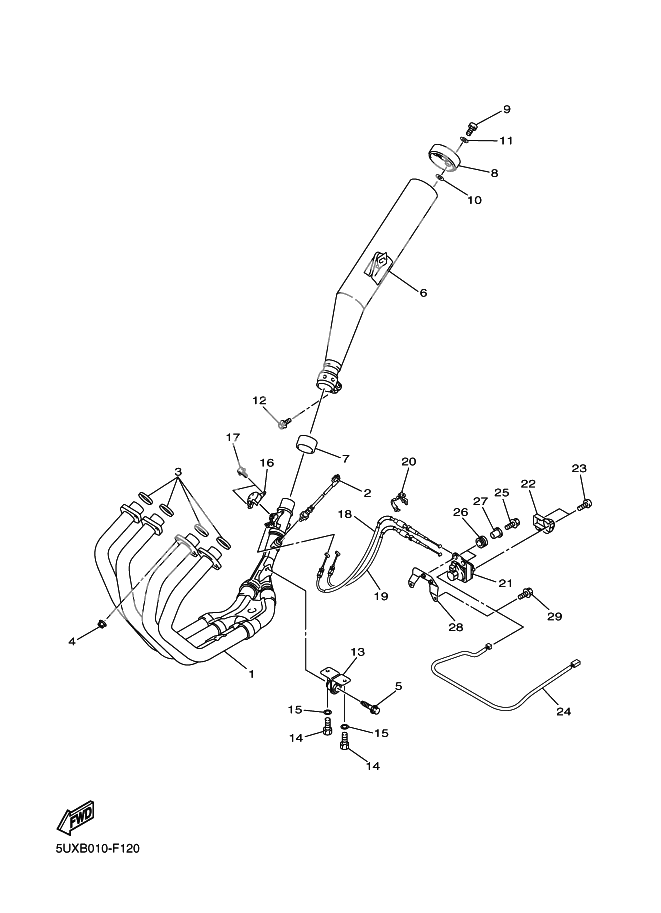

EXHAUST
EXHAUST
エギゾーストパイプコンプリート (Ref #1)
1
Part #5UX-14602-00
SENSOR, OXYGEN (Ref #2)
2
Part #5UX-8592A-00
GASKET, EXHAUST PIPE (Ref #3)
3
Part #4BE-14613-00
NUT, U FLANGE (Ref #4)
4
Part #95604-08200
Bolt, Flange (Ref #5)
5
Part #90105-08164
マフラーコンプリート 1 (Ref #6)
6
Part #5UX-14703-00
ガスケツト,マフラー (Ref #7)
7
Part #5YU-14714-00
CAP (Ref #8)
8
Part #5UX-14799-00
BOLT (Ref #9)
9
Part #91380-06014
Washer, Plate (Ref #10)
10
Part #90201-05017
Washer, Plate (Ref #11)
11
Part #92990-06600
Bolt, Flange (Ref #12)
12
Part #95824-08035
ステー,マフラー (Ref #13)
13
Part #5UX-14791-00
BOLT (Ref #14)
14
Part #97024-08025
BOLT (Ref #14)
14
Part #97024-08025
BOLT (Ref #14)
14
Part #97024-08025
BOLT (Ref #14)
14
Part #97024-08025
WASHER (Ref #15)
15
Part #92904-08600
WASHER (Ref #15)
15
Part #92904-08600
WASHER (Ref #15)
15
Part #92904-08600
WASHER (Ref #15)
15
Part #92904-08600
プロテクター,エギゾースト (Ref #16)
16
Part #5UX-14826-00
Bolt, With Washer (Ref #17)
17
Part #90119-06115
ワイヤ,プーリー 1 (Ref #18)
18
Part #5UX-1133E-01
ワイヤ,プーリー 2 (Ref #19)
19
Part #5UX-1133F-01
CLAMP (Ref #20)
20
Part #90464-20010
サーボモータアセンブリ (Ref #21)
21
Part #2D1-85820-00
カバー,サーボモータ (Ref #22)
22
Part #5VY-85829-00
Screw, Tapping (Ref #23)
23
Part #97702-50514
WIRE, SUB LEAD (Ref #24)
24
Part #5UX-82309-10
Bolt, Flange (Ref #25)
25
Part #95024-06020
GROMMET (Ref #26)
26
Part #90480-14604
COLLAR (Ref #27)
27
Part #90387-06M60
BRACKET (Ref #28)
28
Part #5UX-2115C-00
Bolt, Flange (Ref #29)
29
Part #95027-06014
