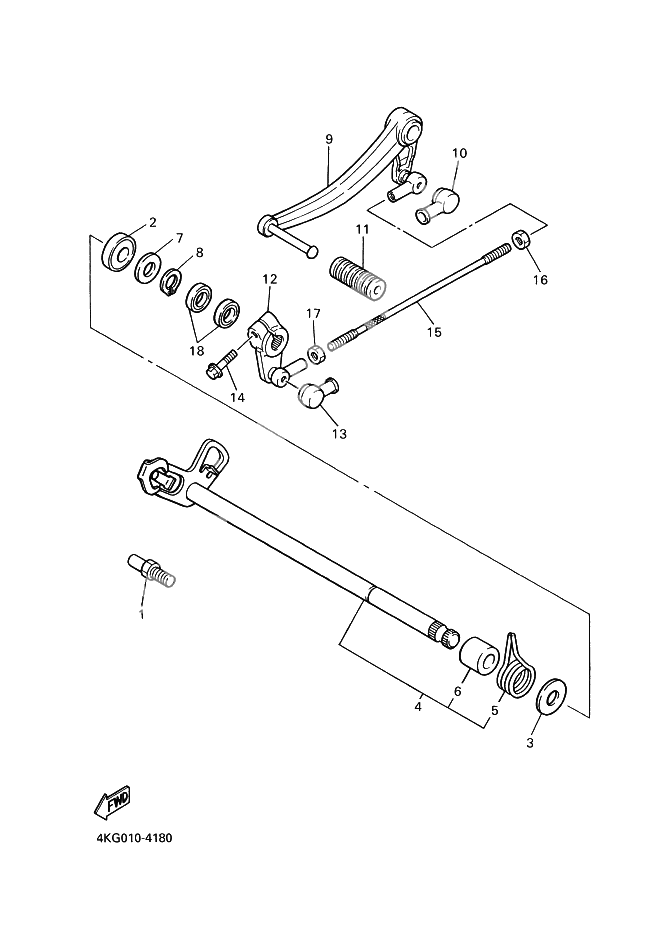

SHIFT SHAFT
SHIFT SHAFT
STOPPER, SCREW (Ref #1)
1
Part #4G0-18127-00
OIL SEAL (SD 12-22-5 HS) (Ref #2)
2
Part #93102-12106
Washer, Plate (Ref #3)
3
Part #90201-12037
Shift Shaft Assy (Ref #4)
4
Part #5UX-18101-02
. SPRING, TORSION (Ref #5)
5
Part #90508-32142
. COLLAR (Ref #6)
6
Part #90387-114K8
WASHER, PLATE (Ref #7)
7
Part #90201-12575
Circlip (Ref #8)
8
Part #99002-10600
Pedal, Shift (Ref #9)
9
Part #4KG-18111-00
. COVER, DUST (Ref #10)
10
Part #2H9-18154-00
. COVER, SHIFT PEDAL (Ref #11)
11
Part #5EB-18113-00
ARM, SHIFT (Ref #12)
12
Part #2GH-18112-01
Bolt, Flange (Ref #14)
14
Part #95824-06020
ROD, SHIFT 2 (Ref #15)
15
Part #2GV-18115-00
NUT(COUNTER CLOCKWISE) (Ref #16)
16
Part #90170-06228
NUT (Ref #17)
17
Part #95304-06700
Oil seal (Ref #18)
18
Part #93109-12075
