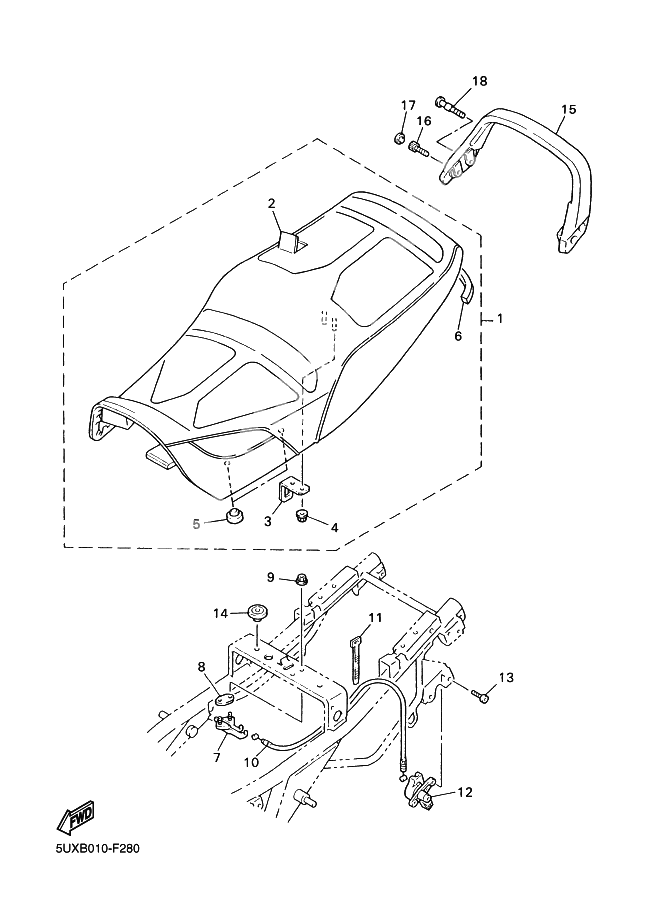

SEAT
SEAT
DOUBLE SEAT ASSY (Ref #1)
1
Part #5UX-24730-00
. SEAT COVER COMP. (Ref #2)
2
Part #5UX-2470F-00
. BRACKET, SEAT (Ref #3)
3
Part #4HM-24728-00
. NUT (Ref #4)
4
Part #90179-06635
. PAD, SEAT (Ref #5)
5
Part #22W-24741-00
ダンパ,シート (Ref #6)
6
Part #4BP-24737-00
SEAT LOCK ASSY (Ref #7)
7
Part #4BP-24780-00
PLATE (Ref #8)
8
Part #4BP-24792-00
Nut, flange (Ref #9)
9
Part #95707-06500
ケーブル,シートロツク (Ref #10)
10
Part #4KG-2478E-00
CLAMP (Ref #11)
11
Part #90464-16061
ヘルメツトハンガーアセンブリ (Ref #12)
12
Part #3YX-21308-00
SCREW (Ref #13)
13
Part #90149-06006
Handle, Seat (Ref #15)
15
Part #4KG-24773-00-33
. BOLT (Ref #16)
16
Part #91317-08025
PLUG (Ref #17)
17
Part #90338-08163
BOLT 1 (Ref #18)
18
Part #5EA-21631-00
-
-
