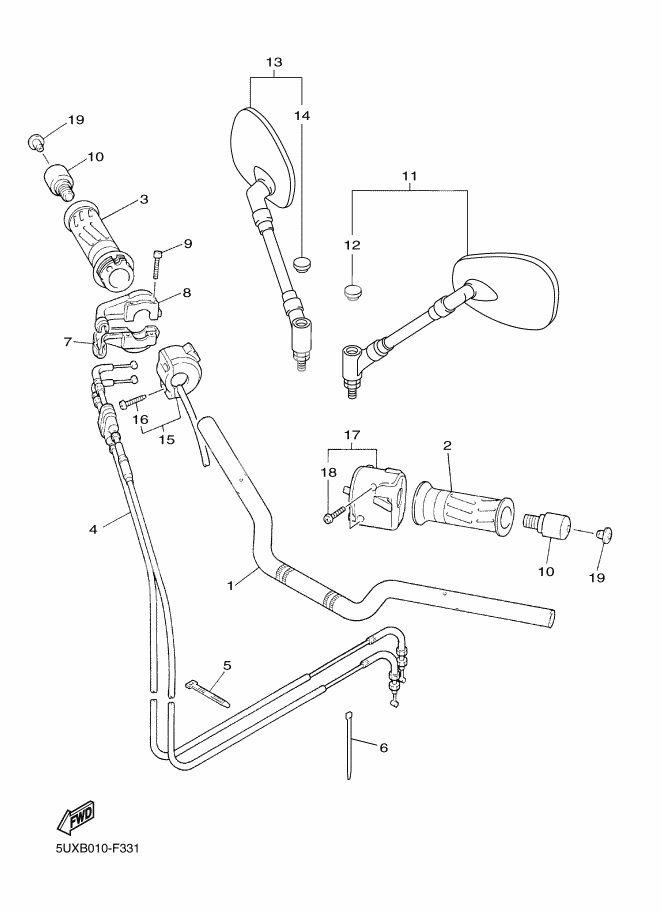

STEERING HANDLE & CABLE
STEERING HANDLE & CABLE
HANDLEBAR (Ref #1)
1
Part #4KG-26111-21
GRIP (LEFT) (Ref #2)
2
Part #4YR-26241-02
Grip Assy (Ref #3)
3
Part #4YR-26240-02
THROTTLE CABLE ASSY (Ref #4)
4
Part #5UX-26302-00
CLAMP (Ref #5)
5
Part #90464-16061
BAND (Ref #6)
6
Part #1UA-82591-00
CAP GRIP (Ref #7)
7
Part #4KG-26281-00
CAP GRIP (Ref #8)
8
Part #3XW-26282-01
Bolt, Hexagon Socket Head (Ref #9)
9
Part #91317-05035
END, GRIP (Ref #10)
10
Part #5GJ-26246-00
END, GRIP (Ref #10)
10
Part #5GJ-26246-00
END, GRIP (Ref #10)
10
Part #5GJ-26246-00
END, GRIP (Ref #10)
10
Part #5GJ-26246-00
REAR VIEW MIRROR ASSY (LEFT) (Ref #11)
11
Part #5UX-26280-10
. CAP (Ref #12)
12
Part #5PS-26133-20
REAR VIEW MIRROR ASSY (RIGHT) (Ref #13)
13
Part #5UX-26290-10
SWITCH, HANDLE 2 (Ref #15)
15
Part #5PW-83975-00
. SCREW, PAN HEAD (Ref #16)
16
Part #98507-05022
SWITCH, HANDLE 5 (Ref #17)
17
Part #5UX-83969-00
. SCREW, PAN HEAD (Ref #18)
18
Part #98507-05025
CAP, BOLT (Ref #19)
19
Part #4X7-23469-10
CAP, BOLT (Ref #19)
19
Part #4X7-23469-10
CAP, BOLT (Ref #19)
19
Part #4X7-23469-10
CAP, BOLT (Ref #19)
19
Part #4X7-23469-10
