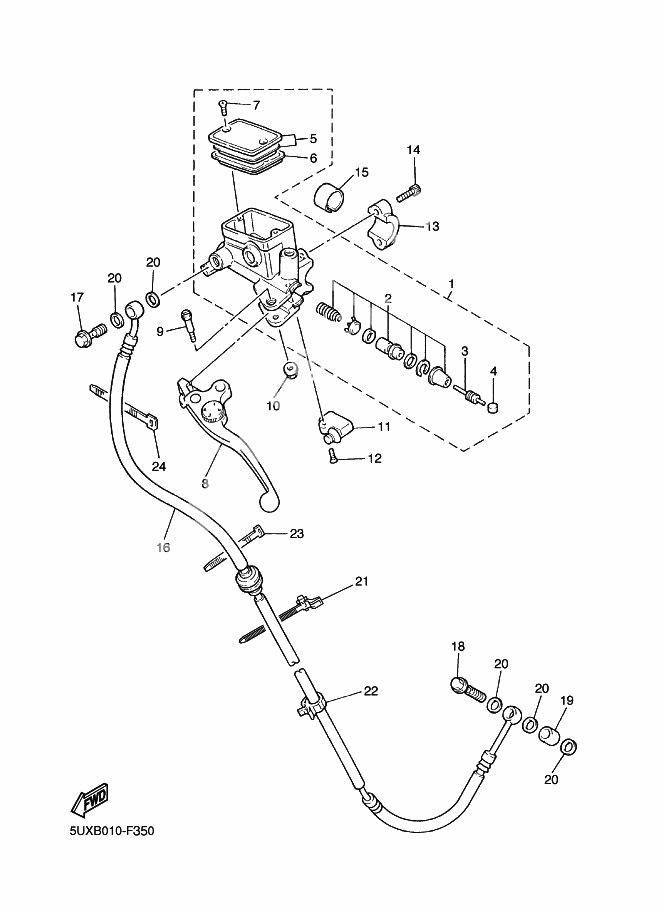

FRONT MASTER CYLINDER
FRONT MASTER CYLINDER
MASTER CYLINDER SUB ASSY (Ref #1)
1
Part #5DM-W2587-01
. CYLINDER KIT, MASTER (Ref #2)
2
Part #5DM-W0041-50
. リザーバキヤツプセツト (Ref #3)
3
Part #4HM-W2585-01
. DIAPHRAGM, RESERVOIR (Ref #4)
4
Part #4HM-25854-00
. SCREW, FLAT HEAD (Ref #5)
5
Part #98706-04012
LEVER 2 (Ref #6)
6
Part #5EB-83922-01
Bolt, Lever (Ref #7)
7
Part #3FV-2589F-00
Nut, U (Ref #8)
8
Part #95606-06100
FRONT STOP SWITCH ASSY (Ref #9)
9
Part #4HM-83980-00
. SCREW, PAN HEAD (Ref #10)
10
Part #98502-04012
. WASHER, SPRING (Ref #11)
11
Part #92902-04100
. WASHER, PLATE (Ref #12)
12
Part #92902-04600
BRACKET, MASTER CYLINDER (Ref #13)
13
Part #4HM-25867-00
BOLT (Ref #14)
14
Part #91316-06020
HOSE, BRAKE 1 (Ref #15)
15
Part #5WM-25872-00
HOSE, BRAKE 2 (Ref #16)
16
Part #5WM-25873-00
Bolt, Union (Ref #17)
17
Part #90401-10038
GASKET (Ref #18)
18
Part #90430-10005
CLAMP (Ref #19)
19
Part #90461-10008
CLAMP (Ref #19)
19
Part #90461-10008
CLAMP (Ref #19)
19
Part #90461-10008
CLAMP (Ref #19)
19
Part #90461-10008
Bolt, Flange (Ref #20)
20
Part #95027-06010
Bolt, Flange (Ref #20)
20
Part #95027-06010
Bolt, Flange (Ref #20)
20
Part #95027-06010
Bolt, Flange (Ref #20)
20
Part #95027-06010
HOLDER, BRAKE HOSE 4 (Ref #21)
21
Part #4KG-25887-01
Bolt, Flange (Ref #22)
22
Part #90105-060A0
HOLDER, BRAKE HOSE 2 (Ref #23)
23
Part #4KG-25876-01
Bolt, Union (Ref #25)
25
Part #90401-10172
Bolt, Union (Ref #25)
25
Part #90401-10172
Bolt, Union (Ref #25)
25
Part #90401-10172
Bolt, Union (Ref #25)
25
Part #90401-10172
