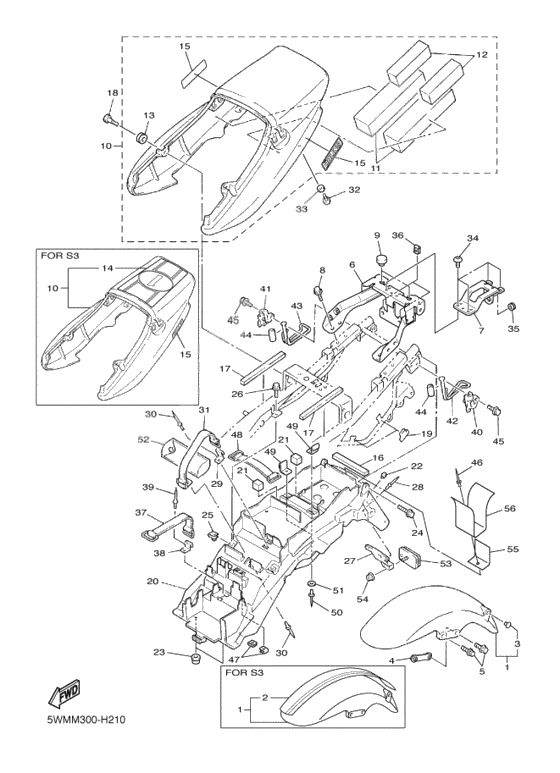

Fender
Fender
Front Fender Assy (Ref #1)
1
Part #4KG-Y2151-01-PC
Front Fender Assy (Ref #1)
1
Part #4KG-Y2151-01-PC
Front Fender Assy (Ref #1)
1
Part #4KG-Y2151-01-PC
Front Fender Assy (Ref #1)
1
Part #4KG-Y2151-01-PC
Plug(2Gu) (Ref #3)
3
Part #90338-12192-00
Крепление крыла (Ref #4)
4
Part #5UX-21512-00-00
BOLT (Ref #5)
5
Part #95024-06025-00
Bracket, taillight (Ref #6)
6
Part #5UX-2117E-00-00
STAY (Ref #7)
7
Part #5UX-2117A-00-00
BOLT (Ref #8)
8
Part #95817-08012-00
Pad, Seat (Ref #9)
9
Part #22W-24741-00-00
Cover, Rear Fender (Ref #10)
10
Part #5EA-Y2165-0M-P7
Cover, Rear Fender (Ref #10)
10
Part #5EA-Y2165-0M-P7
Cover, Rear Fender (Ref #10)
10
Part #5EA-Y2165-0M-P7
Cover, Rear Fender (Ref #10)
10
Part #5EA-Y2165-0M-P7
Дэмпфер соединения (Ref #11)
11
Part #5EA-21779-10-00
Дэмпфер соединения (Ref #12)
12
Part #4KG-21778-00-00
GROMMET (Ref #13)
13
Part #90480-13014-00
Дэмпфер платы 2 (Ref #16)
16
Part #3YF-2414J-10-00
Амортизатор (Ref #17)
17
Part #4HM-2139X-00-00
Амортизатор (Ref #17)
17
Part #4HM-2139X-00-00
Амортизатор (Ref #17)
17
Part #4HM-2139X-00-00
Амортизатор (Ref #17)
17
Part #4HM-2139X-00-00
Винт с круглой головкой (Ref #18)
18
Part #90150-06036-00
サイドカバーアセンブリ WG (Ref #19)
19
Part #2N4-21717-00-00
Fender, rear (Ref #20)
20
Part #5UX-21611-00-00
Амортизатор (Ref #21)
21
Part #5UX-21649-00-00
Амортизатор (Ref #21)
21
Part #5UX-21649-00-00
Амортизатор (Ref #21)
21
Part #5UX-21649-00-00
Амортизатор (Ref #21)
21
Part #5UX-21649-00-00
Демпфер (Ref #22)
22
Part #4G0-21639-00-00
Болт (Ref #23)
23
Part #90109-06086-00
Nut, Spring (Ref #25)
25
Part #90183-06069-00
BOLT (Ref #26)
26
Part #95817-06016-00
Bracket, Reflector 1 (Ref #27)
27
Part #5EA-85132-00-00
Заклёпка (Ref #28)
28
Part #90267-40076-00
Крюк (зацеп ремня) (Ref #29)
29
Part #4HM-2162A-00-00
Обвязка, аккумулятор (Ref #31)
31
Part #4HM-82131-00-00
Болт (Ref #32)
32
Part #90110-05201-00
Washer, Plate (Ref #33)
33
Part #90202-06113-00
GROMMET (Ref #35)
35
Part #90480-13003-00
Nut, Spring (Ref #36)
36
Part #90183-050A8-00
Ремень (Ref #37)
37
Part #561-24173-00-00
Крюк боковой крышки 1 (Ref #40)
40
Part #4KG-21331-10-00
Hook, Side Cover 2 (Ref #41)
41
Part #4KG-21332-10-00
WIRE (Ref #42)
42
Part #5EA-21654-00-00
Wire, 2 (Ref #43)
43
Part #5EA-21664-00-00
Амортизатор (Ref #44)
44
Part #4KG-21639-00-00
Амортизатор (Ref #44)
44
Part #4KG-21639-00-00
Амортизатор (Ref #44)
44
Part #4KG-21639-00-00
Амортизатор (Ref #44)
44
Part #4KG-21639-00-00
Заклёпка (Ref #46)
46
Part #902-69070-76-00
Nut, Spring (Ref #47)
47
Part #90183-04039-00
Обвязка, аккумулятор (Ref #48)
48
Part #7H3-82131-00-00
HOOK, SPRING (Ref #49)
49
Part #36F-28379-00-00
HOOK, SPRING (Ref #49)
49
Part #36F-28379-00-00
HOOK, SPRING (Ref #49)
49
Part #36F-28379-00-00
HOOK, SPRING (Ref #49)
49
Part #36F-28379-00-00
Washer, Plate (Ref #51)
51
Part #90201-043H7-00
Tool kit (Ref #52)
52
Part #5UX-28100-00-00
Rear Reflector Assy (Ref #53)
53
Part #4KM-85130-00-00
Nut, flange (Ref #54)
54
Part #95707-05500-00
Защита (Ref #55)
55
Part #5UX-21652-00-00
Protecter, Wire Harness (Ref #56)
56
Part #5UX-82589-00-00
-
-
Цена: 420.00 р.
Доступно: 2
-
