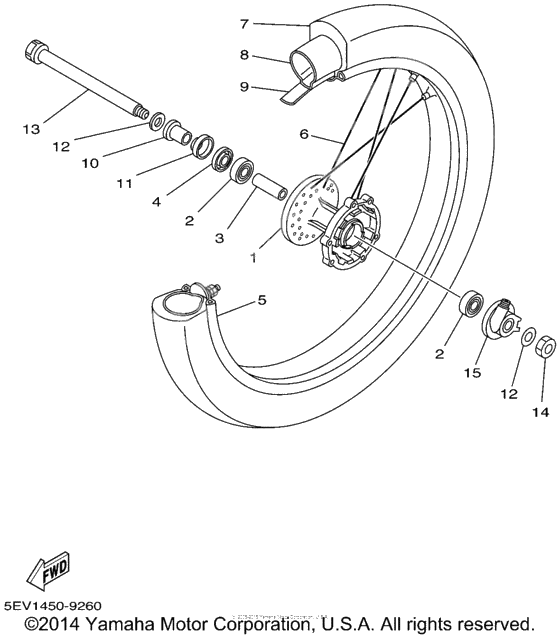

Front wheel
Front wheel
Hub, front (Ref #1)
1
Part #34X-25111-02-35
BEARING (Ref #2)
2
Part #93306-20205-00
BEARING (Ref #2)
2
Part #93306-20205-00
BEARING (Ref #2)
2
Part #93306-20205-00
BEARING (Ref #2)
2
Part #93306-20205-00
SPACER (Ref #3)
3
Part #90560-15290-00
Oil seal (Ref #4)
4
Part #93102-20281-00
Rim (1.60-21) (Ref #5)
5
Part #94416-21536-00
Spoke set, front (Ref #6)
6
Part #1KH-25104-00-00
Tire(Bs-Mcs2.75-21 4Pr Tw27) (Ref #7)
7
Part #941-27212-X0-00
Tube (Mcs 2.75/3.00-21 Tr6) (Ref #8)
8
Part #94227-21123-00
Band, Rim (1.60-21) (Ref #9)
9
Part #94330-21084-00
COLLAR (Ref #10)
10
Part #90387-15600-00
Cover, Hub Dust (Ref #11)
11
Part #322-25118-00-00
Washer, Plate (Ref #12)
12
Part #90201-15797-00
Washer, Plate (Ref #12)
12
Part #90201-15797-00
Washer, Plate (Ref #12)
12
Part #90201-15797-00
Washer, Plate (Ref #12)
12
Part #90201-15797-00
Ось колеса (Ref #13)
13
Part #34X-25181-00-00
Гайка U (Ref #14)
14
Part #95617-14100-00
Блок шестерен (Ref #15)
15
Part #34X-25190-01-00
