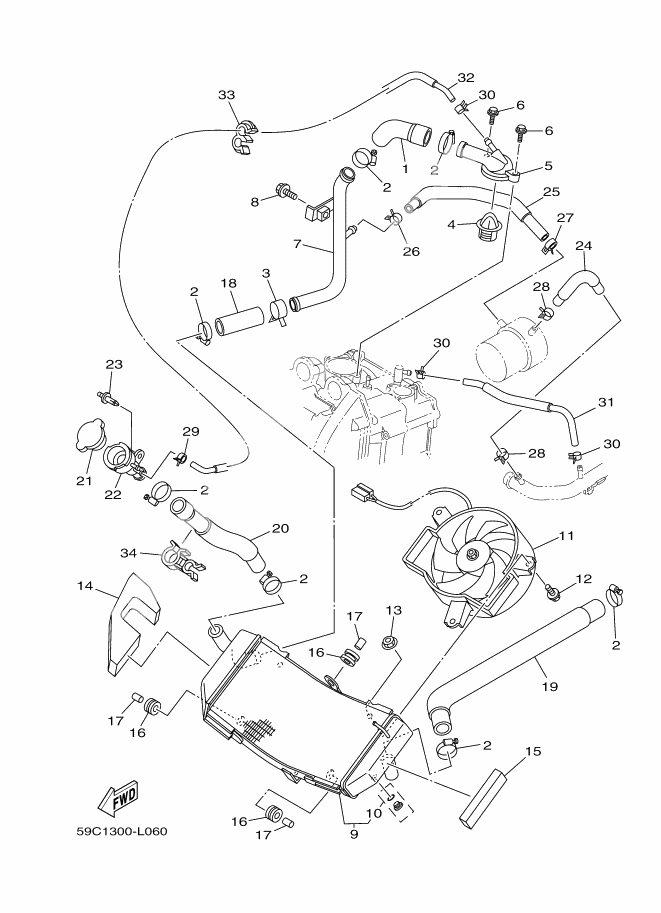

RADIATOR AND HOSE
RADIATOR AND HOSE
PIPE 3 (Ref #1)
1
Part #59C-12483-00
CLIP (Ref #3)
3
Part #90467-26189
THERMOSTAT ASSY (Ref #4)
4
Part #4JH-12410-00
Cover, thermostat (Ref #5)
5
Part #4B5-12413-00
Bolt, Flange (Ref #6)
6
Part #95022-06025
Bolt, Flange (Ref #6)
6
Part #95022-06025
Bolt, Flange (Ref #6)
6
Part #95022-06025
Bolt, Flange (Ref #6)
6
Part #95022-06025
PIPE 4 (Ref #7)
7
Part #59C-12484-00
Bolt, Flange (Ref #8)
8
Part #95022-06012
Radiator assy (Ref #9)
9
Part #59C-12461-00
. コツク,ドレーン (Ref #10)
10
Part #5VU-12478-00
ブロワーアセンブリ (Ref #11)
11
Part #59C-12405-00
ボルト,ブロワーホールデイング (Ref #12)
12
Part #2S3-12675-00
NUT 1 (Ref #13)
13
Part #5SL-12671-00
DAMPER, 4 (Ref #14)
14
Part #59C-28455-00
DAMPER 4 (Ref #15)
15
Part #59C-28435-00
PIPE 5 (Ref #18)
18
Part #59C-12485-00
PIPE 6 (Ref #19)
19
Part #59C-12476-00
PIPE 7 (Ref #20)
20
Part #59C-12477-00
CAP, RADIATOR (Ref #21)
21
Part #5SL-12462-00
SUPT, FILLER NECK (Ref #22)
22
Part #5GJ-12591-00
RIVET (Ref #23)
23
Part #90269-07008
HOSE 1 (Ref #24)
24
Part #59C-1243A-00
HOSE 2 (Ref #25)
25
Part #4B5-1243E-00
Clip (Ref #26)
26
Part #90467-15001
CLIP (Ref #27)
27
Part #90467-15141
Clip (Ref #28)
28
Part #90467-160A6
Clip (Ref #28)
28
Part #90467-160A6
Clip (Ref #28)
28
Part #90467-160A6
Clip (Ref #28)
28
Part #90467-160A6
Clip (Ref #29)
29
Part #90467-10038
HOSE 6 (Ref #31)
31
Part #59C-12589-00
ホース 7 (Ref #32)
32
Part #59C-12551-00
CLAMP (Ref #33)
33
Part #90464-13194
CLAMP (Ref #34)
34
Part #90464-23001
