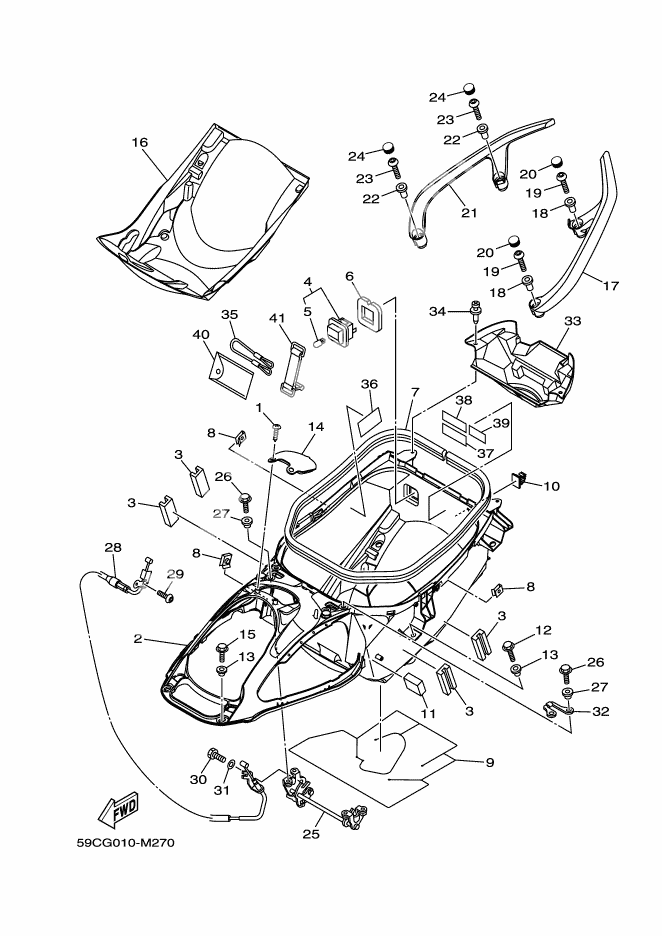

SEAT
SEAT
DOUBLE SEAT ASSY (Ref #1)
1
Part #4B5-24730-53
. COVER, seat (Ref #2)
2
Part #4B5-24731-00
. BRACKET, SEAT (Ref #3)
3
Part #4B5-24718-20
. BRACKET, SEAT (Ref #4)
4
Part #4B5-24728-20
Washer, Plate (Ref #7)
7
Part #90201-065G8
. PLATE (Ref #8)
8
Part #4B5-24752-00
Bolt, Flange (Ref #9)
9
Part #95802-06025
. シートバツクアセンブリ (Ref #10)
10
Part #4B5-24790-03
. . カバー,シートバツク (Ref #11)
11
Part #4B5-24791-00
Hinge, seat (Ref #12)
12
Part #4B5-24726-01
ARM (Ref #13)
13
Part #4B5-2474E-00
ARM (Ref #13)
13
Part #4B5-2474E-00
ARM (Ref #13)
13
Part #4B5-2474E-00
ARM (Ref #13)
13
Part #4B5-2474E-00
Nut, Self-Locking (Ref #14)
14
Part #95602-06200
CLIP (Ref #15)
15
Part #90468-18121
Hinge, seat (Ref #16)
16
Part #4B5-24769-00
ヒンジ,シート 2 (Ref #17)
17
Part #4B5-24779-00
Bolt, Button Head (Ref #18)
18
Part #92012-08020
Bolt, Button Head (Ref #18)
18
Part #92012-08020
Bolt, Button Head (Ref #18)
18
Part #92012-08020
Bolt, Button Head (Ref #18)
18
Part #92012-08020
BRACKET, TAIL COVER (Ref #19)
19
Part #59C-2475U-00
DAMPER (Ref #21)
21
Part #59P-21746-00
STOPPER (Ref #22)
22
Part #4B5-2478G-12
STOPPER (Ref #22)
22
Part #4B5-2478G-12
STOPPER (Ref #22)
22
Part #4B5-2478G-12
STOPPER (Ref #22)
22
Part #4B5-2478G-12
CLIP (Ref #23)
23
Part #90468-16001
CLIP (Ref #23)
23
Part #90468-16001
CLIP (Ref #23)
23
Part #90468-16001
CLIP (Ref #23)
23
Part #90468-16001
