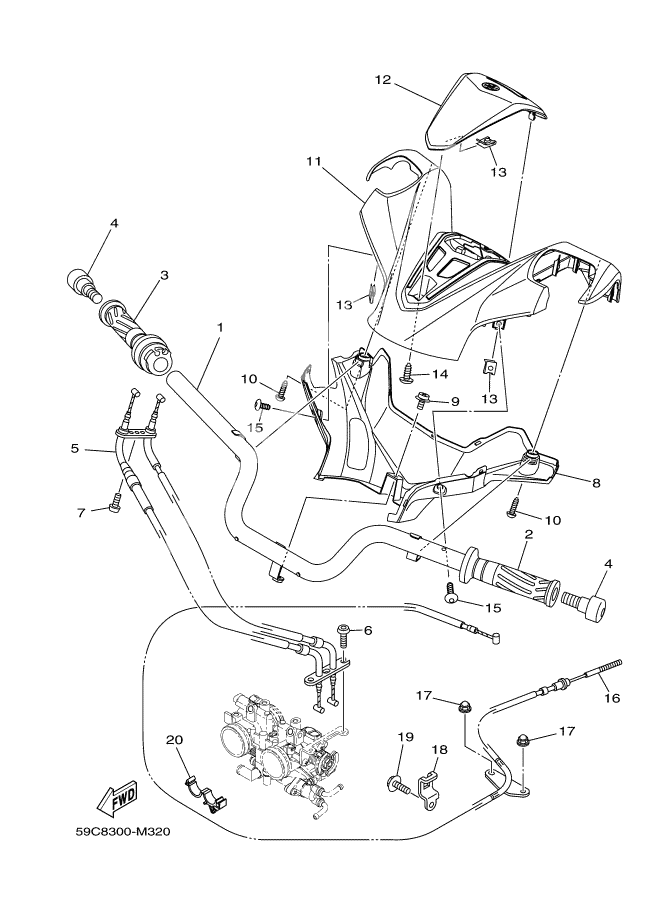

STEERING HANDLE & CABLE
STEERING HANDLE & CABLE
ハンドルコンプリート (Ref #1)
1
Part #59C-26110-01
GRIP (LEFT) (Ref #2)
2
Part #4YR-26241-02
Grip Assy (Ref #3)
3
Part #4YR-26240-02
END, GRIP (Ref #4)
4
Part #3HX-26246-10
END, GRIP (Ref #4)
4
Part #3HX-26246-10
END, GRIP (Ref #4)
4
Part #3HX-26246-10
END, GRIP (Ref #4)
4
Part #3HX-26246-10
THROTTLE CABLE ASSY (Ref #5)
5
Part #59C-26301-00
Bolt, Button Head (Ref #6)
6
Part #92012-05012
Screw, Pan Head (Ref #7)
7
Part #98502-05020
カバー,ハンドルバーロワ 1 (Ref #8)
8
Part #59C-26144-00
Screw, With Washer (Ref #9)
9
Part #90159-05032
Screw, Round Tapping (Ref #10)
10
Part #90160-05014
Screw, Round Tapping (Ref #10)
10
Part #90160-05014
Screw, Round Tapping (Ref #10)
10
Part #90160-05014
Screw, Round Tapping (Ref #10)
10
Part #90160-05014
COVER, HANDLE UPPER 1 (Ref #11)
11
Part #59C-26143-00
Крышка кожуха руля (чёрная) (Ref #12)
12
Part #59C-26145-00-P0
SCREW,TAPPING (Ref #14)
14
Part #97702-50016
Screw, Tapping (Ref #15)
15
Part #90167-05079
Screw, Tapping (Ref #15)
15
Part #90167-05079
Screw, Tapping (Ref #15)
15
Part #90167-05079
Screw, Tapping (Ref #15)
15
Part #90167-05079
WIRE (Ref #16)
16
Part #59C-2835X-00
Nut, Crown (Ref #17)
17
Part #90176-06055
Nut, Crown (Ref #17)
17
Part #90176-06055
Nut, Crown (Ref #17)
17
Part #90176-06055
Nut, Crown (Ref #17)
17
Part #90176-06055
ガイド,ケーブル 1 (Ref #18)
18
Part #4B5-26131-00
Bolt, Flange (Ref #19)
19
Part #95822-06010
Clamp (Ref #20)
20
Part #90464-16006
