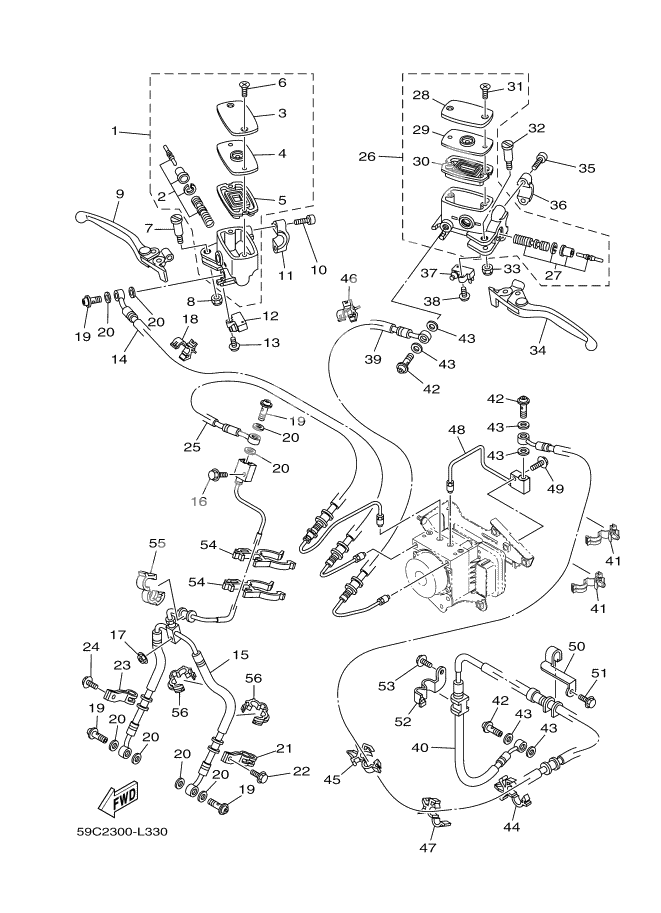

FRONT MASTER CYLINDER
FRONT MASTER CYLINDER
MASTER CYLINDER SUB ASSY (Ref #1)
1
Part #4B5-W2587-40
. CYLINDER KIT, MASTER (Ref #2)
2
Part #4B5-W0041-00
. CAP, RESERVOIR (Ref #3)
3
Part #4B5-25852-00
. BUSH,DIAPHRAGM (Ref #4)
4
Part #4B5-25855-00
. DIAPHRAGM, RESERVOIR (Ref #5)
5
Part #4B5-25854-00
. SCREW (Ref #6)
6
Part #5VS-2589H-00
Bolt, Lever (Ref #7)
7
Part #5VS-2589F-00
Nut, U (Ref #8)
8
Part #95617-06100
LEVER 2 (Ref #9)
9
Part #4B5-83922-00
BOLT (Ref #10)
10
Part #5VS-26332-00
BRACKET, MASTER CYLINDER (Ref #11)
11
Part #5VS-25867-00
Switch (Ref #12)
12
Part #36Y-82917-00
SCREW, WITH WASHER (Ref #13)
13
Part #97602-04214
ホース,ブレーキ (Ref #14)
14
Part #59C-25874-00
HOSE, BRAKE 2 (Ref #15)
15
Part #59C-25873-00
Bolt, Flange (Ref #16)
16
Part #95022-06025
NUT, FLANGE (Ref #17)
17
Part #95702-06500
CLAMP (Ref #18)
18
Part #90464-15192
HOLDER, BRAKE HOSE 4 (Ref #21)
21
Part #4B5-25886-00
Bolt, Flange (Ref #22)
22
Part #95802-06012
ホルダ,ブレーキホース 1 (Ref #23)
23
Part #4B5-25875-00
パイプ,ブレーキ 2 (Ref #25)
25
Part #59C-25882-00
MASTER CYLINDER SUB ASSY (Ref #26)
26
Part #4B5-W2587-50
. CYLINDER KIT, MASTER (Ref #27)
27
Part #4B5-W0041-10
LEVER 1 (Ref #34)
34
Part #4B5-83912-00
FRONT STOP SWITCH ASSY (Ref #37)
37
Part #36Y-83980-01
ホース,ブレーキ (Ref #39)
39
Part #59C-2584B-00
ホース,ブレーキ (Ref #40)
40
Part #59C-2584C-00
CLAMP (Ref #41)
41
Part #90464-16012
CLAMP (Ref #41)
41
Part #90464-16012
CLAMP (Ref #41)
41
Part #90464-16012
CLAMP (Ref #41)
41
Part #90464-16012
Clamp (Ref #44)
44
Part #90464-16006
パイプ,ブレーキ 6 (Ref #48)
48
Part #59C-2588C-00
プレート,ロツク 1 (Ref #50)
50
Part #59C-28216-00
Bolt, Flange (Ref #51)
51
Part #95822-06012
プレート,ロツク 3 (Ref #52)
52
Part #59C-28236-00
CLAMP (Ref #54)
54
Part #90464-43001
CLAMP (Ref #54)
54
Part #90464-43001
CLAMP (Ref #54)
54
Part #90464-43001
CLAMP (Ref #54)
54
Part #90464-43001
CLAMP (Ref #55)
55
Part #90464-16003
CLAMP (Ref #56)
56
Part #90464-14003
CLAMP (Ref #56)
56
Part #90464-14003
CLAMP (Ref #56)
56
Part #90464-14003
CLAMP (Ref #56)
56
Part #90464-14003
