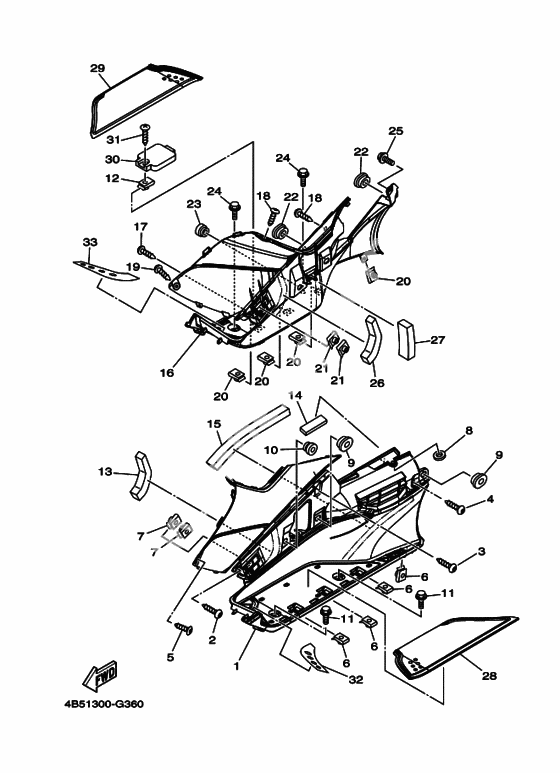

Подножки & подставка 2
Подножки & подставка 2
Board, Footrest (Ref #1)
1
Part #4B5-27481-00-00
Screw,tapping (Ref #2)
2
Part #90167-05077-00
Винт (Ref #5)
5
Part #90167-05076-00
Гайка-скоба (Ref #7)
7
Part #90183-060A6-00
Гайка-скоба (Ref #7)
7
Part #90183-060A6-00
Гайка-скоба (Ref #7)
7
Part #90183-060A6-00
Гайка-скоба (Ref #7)
7
Part #90183-060A6-00
Валик (Ref #8)
8
Part #4B5-27485-00-00
GROMMET (Ref #9)
9
Part #90480-01558-00
GROMMET (Ref #9)
9
Part #90480-01558-00
GROMMET (Ref #9)
9
Part #90480-01558-00
GROMMET (Ref #9)
9
Part #90480-01558-00
GROMMET (Ref #10)
10
Part #90480-13567-00
Screw, With Washer (Ref #11)
11
Part #90119-06209-00
Screw, With Washer (Ref #11)
11
Part #90119-06209-00
Screw, With Washer (Ref #11)
11
Part #90119-06209-00
Screw, With Washer (Ref #11)
11
Part #90119-06209-00
Демпфер 1 (Ref #13)
13
Part #4B5-28217-00-00
Амортизатор (Ref #14)
14
Part #4B5-28247-00-00
Амортизатор (Ref #15)
15
Part #4B5-28267-00-00
Board, Footrest 2 (Ref #16)
16
Part #4B5-27488-00-00
Демпфер 2 (Ref #27)
27
Part #4B5-28227-00-00
Коврик (Ref #28)
28
Part #4B5-27483-00-00
Коврик (Ref #29)
29
Part #4B5-27484-00-00
Cover 2 (Ref #30)
30
Part #5GJ-27463-00-00
Footrest (Ref #32)
32
Part #4B5-27451-00-00
Footrest (Ref #33)
33
Part #4B5-27461-00-00
