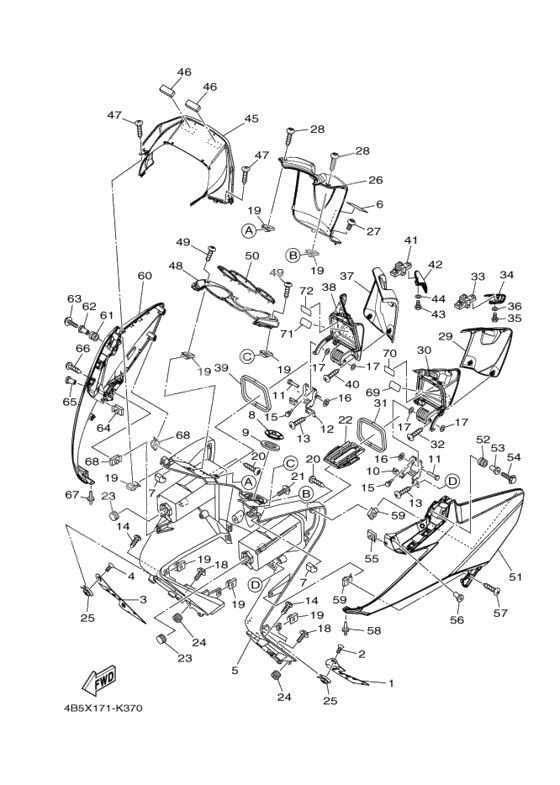

Leg shield
Leg shield
Footrest 1 (Ref #1)
1
Part #4B5-27411-00-00
Screw, Countersunk (Ref #2)
2
Part #901-51060-76-00
Footrest 2 (Ref #3)
3
Part #4B5-27421-00-00
Щиток облицовочный (Ref #5)
5
Part #4B5-28311-01-00
Label, Caution (Ref #6)
6
Part #4C8-2118K-10-00
Дэмпфер соединения (Ref #7)
7
Part #4B5-2836U-10-00
Дэмпфер соединения (Ref #7)
7
Part #4B5-2836U-10-00
Дэмпфер соединения (Ref #7)
7
Part #4B5-2836U-10-00
Дэмпфер соединения (Ref #7)
7
Part #4B5-2836U-10-00
Крышка (Ref #8)
8
Part #4B5-82552-00-00
Уплотнение (Ref #9)
9
Part #5VU-28307-00-00
Петля (Ref #10)
10
Part #4B5-21796-01-00
PIN (Ref #11)
11
Part #90241-06002-00
PIN (Ref #11)
11
Part #90241-06002-00
PIN (Ref #11)
11
Part #90241-06002-00
PIN (Ref #11)
11
Part #90241-06002-00
Петля (Ref #12)
12
Part #4B5-21797-00-00
Screw, Round Tapping (Ref #13)
13
Part #90160-04008-00
Screw, Round Tapping (Ref #13)
13
Part #90160-04008-00
Screw, Round Tapping (Ref #13)
13
Part #90160-04008-00
Screw, Round Tapping (Ref #13)
13
Part #90160-04008-00
Screw,tapping (Ref #14)
14
Part #90167-05077-00
Screw,tapping (Ref #14)
14
Part #90167-05077-00
Screw,tapping (Ref #14)
14
Part #90167-05077-00
Screw,tapping (Ref #14)
14
Part #90167-05077-00
PLUG (Ref #15)
15
Part #90338-05009-00
PLUG (Ref #15)
15
Part #90338-05009-00
PLUG (Ref #15)
15
Part #90338-05009-00
PLUG (Ref #15)
15
Part #90338-05009-00
Nut, Spring (Ref #16)
16
Part #90183-06008-00
Nut, Spring (Ref #16)
16
Part #90183-06008-00
Nut, Spring (Ref #16)
16
Part #90183-06008-00
Nut, Spring (Ref #16)
16
Part #90183-06008-00
Screw, With Washer (Ref #18)
18
Part #90119-06209-00
Screw, With Washer (Ref #18)
18
Part #90119-06209-00
Screw, With Washer (Ref #18)
18
Part #90119-06209-00
Screw, With Washer (Ref #18)
18
Part #90119-06209-00
Винт (Ref #20)
20
Part #90167-05076-00
Винт (Ref #20)
20
Part #90167-05076-00
Винт (Ref #20)
20
Part #90167-05076-00
Винт (Ref #20)
20
Part #90167-05076-00
Болт с шайбой (Ref #21)
21
Part #90119-06212-00
HOLDER (Ref #22)
22
Part #4B5-2839N-00-00
PLUG (Ref #23)
23
Part #90338-20113-00
PLUG (Ref #23)
23
Part #90338-20113-00
PLUG (Ref #23)
23
Part #90338-20113-00
PLUG (Ref #23)
23
Part #90338-20113-00
GROMMET (Ref #24)
24
Part #90480-13567-00
GROMMET (Ref #24)
24
Part #90480-13567-00
GROMMET (Ref #24)
24
Part #90480-13567-00
GROMMET (Ref #24)
24
Part #90480-13567-00
Nut, Spring (Ref #25)
25
Part #90183-060A8-00
Nut, Spring (Ref #25)
25
Part #90183-060A8-00
Nut, Spring (Ref #25)
25
Part #90183-060A8-00
Nut, Spring (Ref #25)
25
Part #90183-060A8-00
Щиток облицовочный (Ref #26)
26
Part #4B5-28312-00-00
Болт (Ref #27)
27
Part #90111-06095-00
Tapping screw (Ref #28)
28
Part #90169-05003-00
Tapping screw (Ref #28)
28
Part #90169-05003-00
Tapping screw (Ref #28)
28
Part #90169-05003-00
Tapping screw (Ref #28)
28
Part #90169-05003-00
. リツド (Ref #29)
29
Part #4B5-28313-00-00
Panel, Inner 3 (Ref #30)
30
Part #4B5-2836M-00-00
Амортизатор (Ref #31)
31
Part #4B5-28371-00-00
LOCK ASSY (Ref #33)
33
Part #4B5-21780-00-00
Knob, 1 (Ref #34)
34
Part #4B5-2836X-00-00
Screw, With Washer (Ref #35)
35
Part #97017-05012-00
Гайка (Ref #36)
36
Part #90201-05043-00
. リツド (Ref #37)
37
Part #4B5-2839K-00-00
Panel, Inner 4 (Ref #38)
38
Part #4B5-2836N-00-00
Nut, flange (Ref #42)
42
Part #4B5-2836Y-00-00
Panel, Inner 1 (Ref #45)
45
Part #4B5-2836K-00-00
HOOK, SPRING (Ref #46)
46
Part #4B5-2814E-00-00
HOOK, SPRING (Ref #46)
46
Part #4B5-2814E-00-00
HOOK, SPRING (Ref #46)
46
Part #4B5-2814E-00-00
HOOK, SPRING (Ref #46)
46
Part #4B5-2814E-00-00
Держатель проводки (Ref #48)
48
Part #4B5-28346-00-00
Panel, Accessory (Ref #50)
50
Part #4B5-2839R-00-00
Body, cowling (Ref #51)
51
Part #4B5-28351-01-P3
GROMMET (Ref #52)
52
Part #90480-14003-00
Втулка (Ref #53)
53
Part #90387-0602X-00
BOLT (Ref #54)
54
Part #95817-06020-00
Гайка-скоба (Ref #55)
55
Part #90183-060A6-00
Nut, flange (Ref #56)
56
Part #901-79055-23-00
RIVET (Ref #58)
58
Part #902-69060-08-00
Body, Cowling 2 (Ref #60)
60
Part #4B5-28377-01-P3
Label, caution (Ref #69)
69
Part #5RU-24877-A0-00
Label, caution (Ref #70)
70
Part #5RU-24877-B1-00
