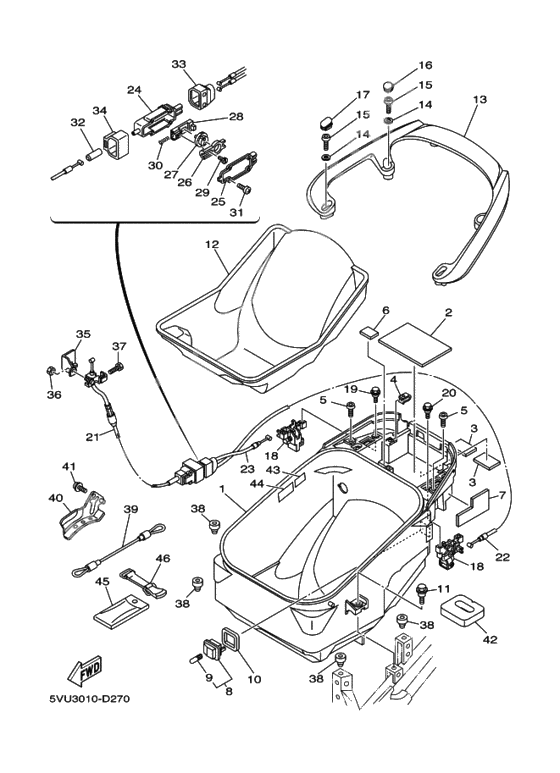

Seat
Seat
Double seat assy (Ref #1)
1
Part #5GJ-24730-31-00
Bracket, seat (Ref #2)
2
Part #5GJ-24748-00-00
PLATE, SEAL DAMPER (Ref #3)
3
Part #5GJ-2470F-20-00
Валик (Ref #4)
4
Part #5GJ-2475M-00-00
Pad, Seat (Ref #5)
5
Part #5GJ-24741-00-00
PLATE (Ref #6)
6
Part #5GJ-24792-00-00
Washer, Plate (Ref #7)
7
Part #90201-06380-00
Гайка, самоблокирующаяся (Ref #8)
8
Part #95604-06200-00
Seat Back Assy (Ref #9)
9
Part #5GJ-24790-30-00
Seat Cover Assy (Ref #10)
10
Part #5GJ-2477A-30-00
BOLT (Ref #11)
11
Part #95817-06020-00
Cover, Seat Comp (Ref #12)
12
Part #5GJ-2473F-00-00
. リツド (Ref #13)
13
Part #5GJ-2473T-00-00
Lever, Seat (Ref #14)
14
Part #5GJ-2477F-00-00
Зацеп (Ref #15)
15
Part #5GJ-24754-01-00
Пружина (Ref #16)
16
Part #4HC-24758-00-00
Ось рычага (Ref #17)
17
Part #93603-50195-00
COVER (Ref #18)
18
Part #5GJ-24217-00-00
Screw,tapping (Ref #19)
19
Part #97707-40608-00
Ось крышки (Ref #20)
20
Part #5GJ-24774-00-00
Reinforcement (Ref #21)
21
Part #5GJ-24762-00-00
Заклёпка (Ref #22)
22
Part #902-69070-76-00
Петля (Ref #23)
23
Part #5GJ-2197J-00-00
BOLT (Ref #24)
24
Part #90109-063F5-00
BOLT (Ref #24)
24
Part #90109-063F5-00
BOLT (Ref #24)
24
Part #90109-063F5-00
BOLT (Ref #24)
24
Part #90109-063F5-00
Шайба волнистая (Ref #25)
25
Part #90206-10036-00
Шайба волнистая (Ref #25)
25
Part #90206-10036-00
Шайба волнистая (Ref #25)
25
Part #90206-10036-00
Шайба волнистая (Ref #25)
25
Part #90206-10036-00
Nut, flange (Ref #26)
26
Part #90179-08491-00
STOPPER (Ref #27)
27
Part #5VU-2478G-00-00
プレート, トランサム (Ref #28)
28
Part #5VU-2474E-00-00
プレート, トランサム (Ref #28)
28
Part #5VU-2474E-00-00
プレート, トランサム (Ref #28)
28
Part #5VU-2474E-00-00
プレート, トランサム (Ref #28)
28
Part #5VU-2474E-00-00
Label, tire (Ref #29)
29
Part #5VU-2218G-00-00
Label, caution (Ref #30)
30
Part #3FB-2415E-C0-00
-
895607-06200-00
Гайка, самоблокирующаяся
1Replaced by 95604-06200-00 Доступно: Нет в наличии
