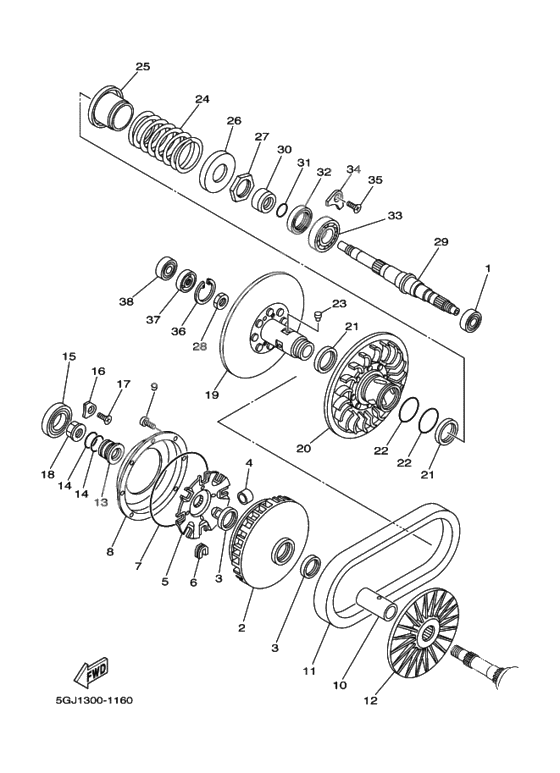

Сцепление
Сцепление
Primary drive gear assy (Ref #1)
1
Part #5GJ-16110-00-00
BEARING (Ref #2)
2
Part #93306-90403-00
Circlip, R-Type (Ref #3)
3
Part #93420-55028-00
Circlip, R-Type (Ref #3)
3
Part #93420-37074-00
BEARING (Ref #4)
4
Part #93317-33179-00
COLLAR (Ref #5)
5
Part #90387-1904J-00
Ботинок муфты (Ref #6)
6
Part #5GJ-16371-00-00
Nut, flange (Ref #7)
7
Part #90170-36279-00
. クラツチアセンブリ (Ref #8)
8
Part #5GJ-16510-10-00
Ролик (Ref #9)
9
Part #5GJ-16540-00-00
Пластина (Ref #10)
10
Part #5GJ-16520-00-00
Plate, Clutch 2 (Ref #13)
13
Part #5GJ-16325-00-00
Plate, Clutch 2 (Ref #13)
13
Part #5GJ-16325-00-00
Plate, Clutch 2 (Ref #13)
13
Part #5GJ-16325-00-00
Plate, Clutch 2 (Ref #13)
13
Part #5GJ-16325-00-00
Spring, Pilot Adjusting (Ref #15)
15
Part #5GJ-16539-10-00
Spring, Pilot Adjusting (Ref #15)
15
Part #5GJ-16539-10-00
Spring, Pilot Adjusting (Ref #15)
15
Part #5GJ-16539-10-00
Spring, Pilot Adjusting (Ref #15)
15
Part #5GJ-16539-10-00
Пластина прижимная (Ref #16)
16
Part #5GJ-16550-00-00
Пружина (Ref #17)
17
Part #5GJ-16334-00-00
Пластина (2) (Ref #18)
18
Part #5GJ-16537-20-00
Пластина (3) (Ref #18)
18
Part #5GJ-16537-30-00
Пластина (0) (Ref #18)
18
Part #5GJ-16537-00-00
Пластина (1) (Ref #18)
18
Part #5GJ-16537-10-00
Кольцо стопорное (Ref #19)
19
Part #5GJ-16529-00-00
Nut, flange (Ref #20)
20
Part #90170-16326-00
