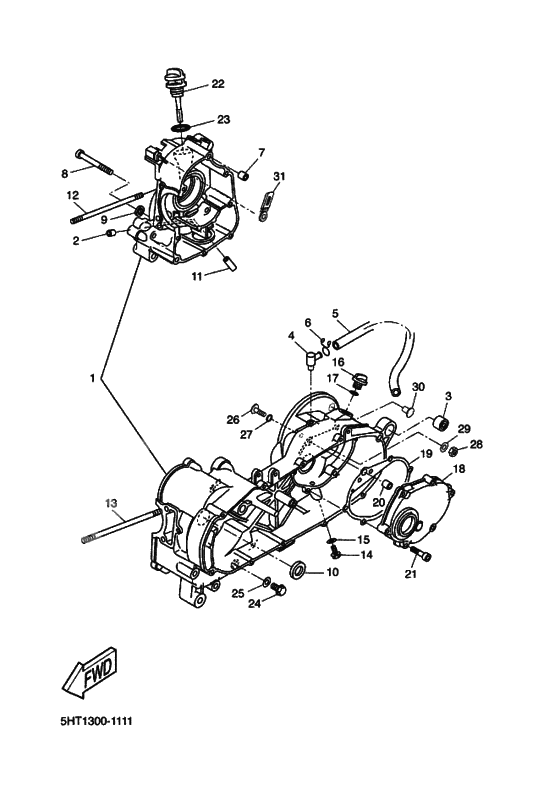

Картер
Картер
Crankcase Assy (Ref #1)
1
Part #5DS-E5150-00-00
NOZZLE (Ref #2)
2
Part #5DS-E5138-00-00
GROMMET (Ref #3)
3
Part #164-22216-00-00
Штуцер угловой (клапан сапуна) (Ref #4)
4
Part #37P-E5371-00-00
Duct (Ref #5)
5
Part #5DS-E5373-00-00
CLIP (Ref #6)
6
Part #90467-11106-00
Pin, Dowel (Ref #7)
7
Part #99530-10114-00
BOLT (Ref #8)
8
Part #9131N-06080-00
Шайба (Ref #9)
9
Part #90201-06X09-00
Oil seal (Ref #10)
10
Part #93102-22294-00
Pipe, Oil 1 (Ref #11)
11
Part #3UH-E3416-00-00
BOLT, STUD (Ref #12)
12
Part #90116-08625-00
BOLT, STUD (Ref #13)
13
Part #90116-08624-00
BOLT (Ref #14)
14
Part #901-0508X-15-00
Washer, Needle Valve (Ref #15)
15
Part #90430-08816-00
Пробка масляная (Ref #16)
16
Part #3VL-E5363-00-00
Washer, Needle Valve (Ref #17)
17
Part #93210-14579-00
Крышка картера 2 (Ref #18)
18
Part #5KD-E5421-00-00
Gasket, Crankcase Cover 2 (Ref #19)
19
Part #5DS-E5461-00-00
Болт диагональный (Ref #21)
21
Part #901-1006X-78-00
Plug, oil (Ref #22)
22
Part #5DS-E5363-00-00
Кольцо уплотнительное (Ref #23)
23
Part #93210-26240-00
Plug, Blind (Ref #26)
26
Part #5HT-F5139-00-00
Прокладка (Ref #27)
27
Part #932-1007X-02-00
Гайка (Ref #28)
28
Part #90185-14815-00
Шайба (Ref #29)
29
Part #3VL-F5384-00-00
PLUG (Ref #30)
30
Part #90338-14X00-00
Скоба (Ref #31)
31
Part #90462-07X00-00
-
2190110-06X05-00
Болт диагональный
6Replaced by 901-1006X-78-00 Доступно: Нет в наличии
-
2793210-07X00-00
Washer, Needle Valve
1Replaced by 932-1007X-02-00 Доступно: Нет в наличии
