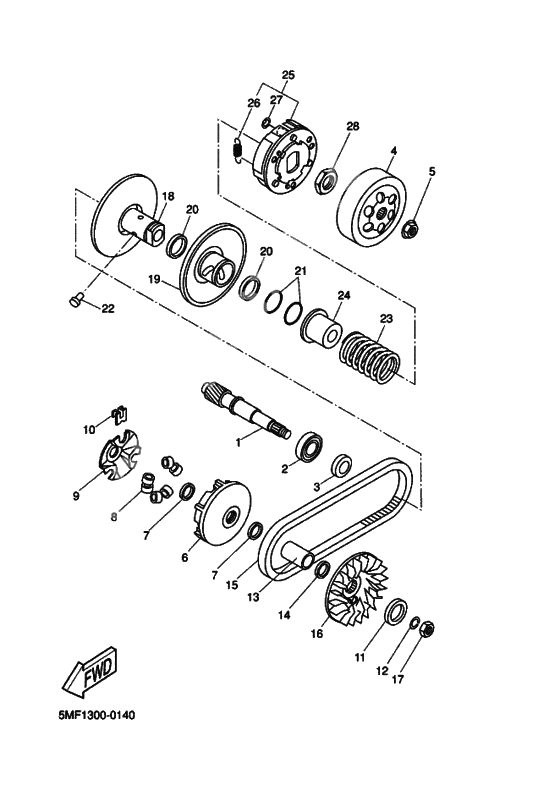

Сцепление
Сцепление
GEAR, PRIMARY DRIVE (Ref #1)
1
Part #5KD-E6111-00-00
BEARING (Ref #2)
2
Part #933-06255-Y1-00
Oil seal (Ref #3)
3
Part #93102-25800-00
. クラツチアセンブリ (Ref #4)
4
Part #5DS-E6611-00-00
Nut, flange (Ref #5)
5
Part #90179-14469-00
Primary Sliding Sheave Comp (Ref #6)
6
Part #5DS-E7606-00-00
Oil seal (Ref #7)
7
Part #93101-21801-00
Oil seal (Ref #7)
7
Part #93101-21801-00
Oil seal (Ref #7)
7
Part #93101-21801-00
Oil seal (Ref #7)
7
Part #93101-21801-00
Грузик (Ref #8)
8
Part #5MF-E7632-00-00
Кулак (Ref #9)
9
Part #5DS-E7623-00-00
PLATE, SEAL DAMPER (Ref #10)
10
Part #5XL-E7653-00-00
Washer, Plate (Ref #11)
11
Part #90201-16X04-00
Шайба пружины (Ref #12)
12
Part #90208-12050-00
COLLAR (Ref #13)
13
Part #90387-168D2-00
Washer, Plate (Ref #14)
14
Part #90201-16X00-00
V-Belt (Ref #15)
15
Part #5DS-17641-00-00
Sheave, Primary Fixed (Ref #16)
16
Part #5DS-E7611-00-00
Nut, flange (Ref #17)
17
Part #90170-12X01-00
Secondary Fixed Sheave Comp (Ref #18)
18
Part #5DS-E7660-00-00
Secondary Sliding Sheave (Ref #19)
19
Part #5DS-E7670-00-00
Oil seal (Ref #20)
20
Part #93104-41800-00
Oil seal (Ref #20)
20
Part #93104-41800-00
Oil seal (Ref #20)
20
Part #93104-41800-00
Oil seal (Ref #20)
20
Part #93104-41800-00
Washer, Needle Valve (Ref #21)
21
Part #93210-43X00-00
Pin, guide (Ref #22)
22
Part #5DS-E7664-00-00
Spring, Compression (Ref #23)
23
Part #90501-45X00-00
Seat, Secondary Spring (Ref #24)
24
Part #5DS-E7684-00-00
Ведущий механизм (Ref #25)
25
Part #5DS-E6620-00-00
Пружина муфты (Ref #26)
26
Part #5DS-E6626-00-00
Circlip (Ref #27)
27
Part #93430-08X00-00
Nut, flange (Ref #28)
28
Part #90170-36X00-00
-
105DS-E7653-00-00
PLATE, SEAL DAMPER
3Replaced by 5XL-E7653-00-00 Доступно: Нет в наличии
