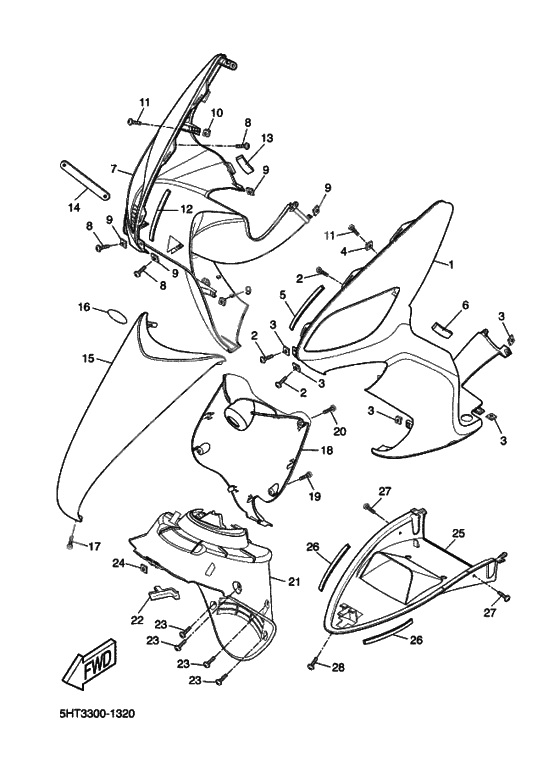

Leg shield
Leg shield
Body, Front Upper 1 (Ref #1)
1
Part #5HT-F835G-00-P0
Body, Front Upper 1 (Ref #1)
1
Part #5HT-F835G-00-P3
Nut, Spring (Ref #4)
4
Part #90183-06X00-00
Амортизатор (Ref #5)
5
Part #5HT-F1746-00-00
Амортизатор (Ref #6)
6
Part #5HT-F8372-00-00
Body, Front Upper 2 (Ref #7)
7
Part #5HT-F835H-00-P0
Body, Front Upper 2 (Ref #7)
7
Part #5HT-F835H-00-P3
Screw,binding (Ref #11)
11
Part #90154-06X01-00
Screw,binding (Ref #11)
11
Part #90154-06X01-00
Screw,binding (Ref #11)
11
Part #90154-06X01-00
Screw,binding (Ref #11)
11
Part #90154-06X01-00
Bracket 1 (Ref #14)
14
Part #5HT-F836A-00-00
Panel, Switch (Ref #15)
15
Part #5HT-F835U-00-P4
Panel, Switch (Ref #15)
15
Part #5HT-F835U-00-P3
Emblem (Ref #16)
16
Part #X01-F153A-10-00
Body, cowling (Ref #18)
18
Part #5HT-F831A-00-P0
Body, cowling (Ref #18)
18
Part #5HT-F831A-00-P3
Screw M5-16 (Ref #20)
20
Part #90167-05X01-00
Grill, Air Intake 1 (Ref #21)
21
Part #5HT-F837N-01-00
COVER (Ref #22)
22
Part #5HT-F8365-00-00
Cover, lower (Ref #25)
25
Part #5HT-F8385-00-00
Screw, Binding (Ref #28)
28
Part #90154-06X02-00
