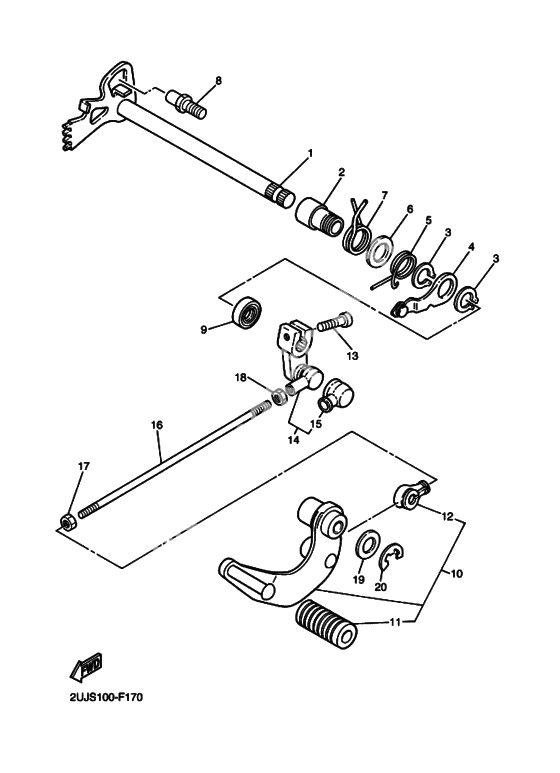

Вал переключения
Вал переключения
Shift Cam Assy (Ref #1)
1
Part #4DN-18540-00-00
Point, Neutral (Ref #2)
2
Part #136-18542-00-00
BEARING (Ref #3)
3
Part #93315-23612-00
Circlip (Ref #4)
4
Part #93440-34025-00
Guide, Plate Stopper (Ref #5)
5
Part #3Y1-18161-00-00
Guide, Plate Stopper (Ref #5)
5
Part #3Y1-18161-00-00
Guide, Plate Stopper (Ref #5)
5
Part #3Y1-18161-00-00
Guide, Plate Stopper (Ref #5)
5
Part #3Y1-18161-00-00
Plate, stopper (Ref #6)
6
Part #3Y1-18141-00-00
Сегмент (Ref #7)
7
Part #3Y1-18185-01-00
Pin, Dowel (Ref #8)
8
Part #93604-18100-00
Pin, Dowel (Ref #9)
9
Part #93604-29151-00
Plate, Side 1 (Ref #10)
10
Part #2K9-18561-00-00
Screw, Pan Head (Ref #11)
11
Part #98707-05035-00
Рукоятка переключение (Ref #12)
12
Part #3Y1-18122-00-00
Spring, Pilot Adjusting (Ref #13)
13
Part #90508-12430-00
Рукоятка переключение (Ref #14)
14
Part #2K7-18151-00-00
CLIP (Ref #15)
15
Part #99080-07600-00
Штифт 1 (Ref #16)
16
Part #4DN-18531-00-00
Кольцо стопорное (Ref #17)
17
Part #99009-10400-00
Кольцо стопорное (Ref #17)
17
Part #99009-10400-00
Кольцо стопорное (Ref #17)
17
Part #99009-10400-00
Кольцо стопорное (Ref #17)
17
Part #99009-10400-00
Штифт 2 (Ref #18)
18
Part #4SH-18535-00-00
Fork, Shift 1 (Ref #19)
19
Part #4DN-18511-00-00
Fork, Shift 2 (Ref #20)
20
Part #4DN-18512-00-00
Fork, Shift 3 (Ref #21)
21
Part #4DN-18513-00-00
