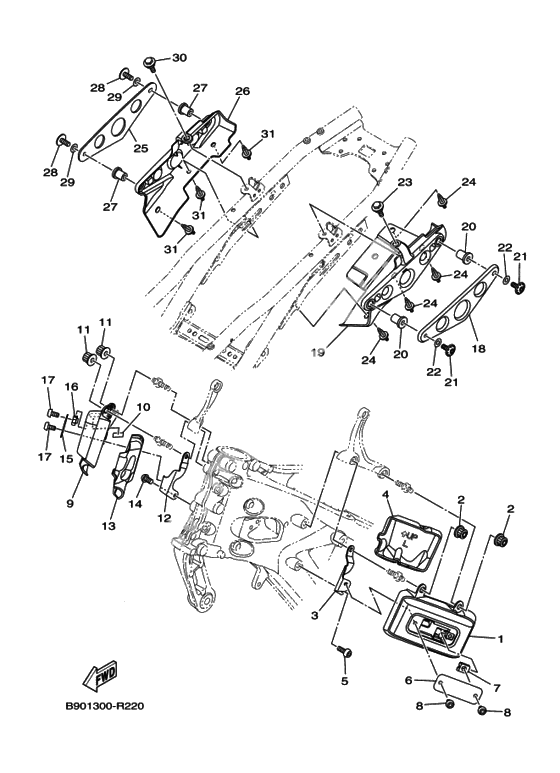

Боковая крышка
Боковая крышка
Stay, Side Cover 1 (Ref #1)
1
Part #B90-2172E-00-P0
Гайка (Ref #2)
2
Part #90179-06074-00
Гайка (Ref #2)
2
Part #90179-06074-00
Гайка (Ref #2)
2
Part #90179-06074-00
Гайка (Ref #2)
2
Part #90179-06074-00
Крепление 1 (Ref #3)
3
Part #B90-2172K-00-00
Крышка левая (Ref #4)
4
Part #B90-2198F-00-00
BOLT (Ref #5)
5
Part #92017-06012-00
Пластина (Ref #6)
6
Part #B90-2176E-00-00
Гайка (Ref #7)
7
Part #90183-050A6-00
Болт (Ref #8)
8
Part #90111-05048-00
Болт (Ref #8)
8
Part #90111-05048-00
Болт (Ref #8)
8
Part #90111-05048-00
Болт (Ref #8)
8
Part #90111-05048-00
Stay, Side Cover 2 (Ref #9)
9
Part #B90-2174E-00-P0
Уплотнение 1 (Ref #10)
10
Part #14B-22873-00-00
Крепление 2 (Ref #12)
12
Part #B90-2172L-00-00
Крышка правая (Ref #13)
13
Part #B90-2198G-00-00
Накладка левая (Ref #18)
18
Part #B90-21711-00-00
Крышка левая (Ref #19)
19
Part #B90-21731-00-00
Nut, flange (Ref #20)
20
Part #90179-06520-00
Nut, flange (Ref #20)
20
Part #90179-06520-00
Nut, flange (Ref #20)
20
Part #90179-06520-00
Nut, flange (Ref #20)
20
Part #90179-06520-00
Болт (Ref #21)
21
Part #90109-06313-00
Болт (Ref #21)
21
Part #90109-06313-00
Болт (Ref #21)
21
Part #90109-06313-00
Болт (Ref #21)
21
Part #90109-06313-00
Washer, Plate (Ref #22)
22
Part #90202-06007-00
Washer, Plate (Ref #22)
22
Part #90202-06007-00
Washer, Plate (Ref #22)
22
Part #90202-06007-00
Washer, Plate (Ref #22)
22
Part #90202-06007-00
Болт (Ref #23)
23
Part #90109-06245-00
Крышка правая (Ref #26)
26
Part #B90-21741-00-00
