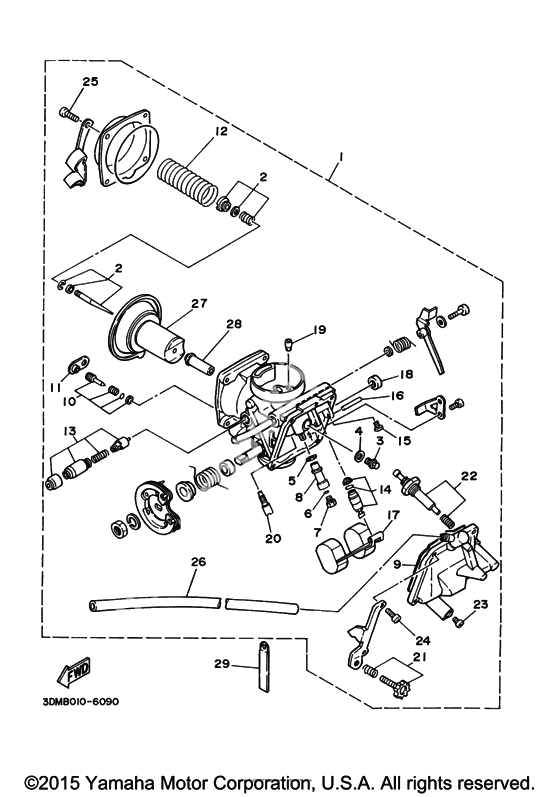

Карбюратор
Карбюратор
Карбюратор (Ref #1)
1
Part #2UJ-14900-01-00
Карбюратор (Ref #1)
1
Part #3BG-14900-01-00
Needle set (Ref #2)
2
Part #3BG-1490J-00-00
Needle set (Ref #2)
2
Part #3BG-1490J-00-00
Needle set (Ref #2)
2
Part #3BG-1490J-00-00
Needle set (Ref #2)
2
Part #3BG-1490J-00-00
BOLT (Ref #3)
3
Part #1HX-14565-00-00
Washer,main Jet (Ref #4)
4
Part #137-14153-00-00
Washer, Needle Valve (Ref #5)
5
Part #1AE-14237-00-00
Washer, Plate (Ref #6)
6
Part #1AE-14227-00-00
Jet, Main (110) (Ref #7)
7
Part #620-14231-22-A0
HOLDER (Ref #8)
8
Part #1AE-14261-00-00
Washer, Needle Valve (Ref #9)
9
Part #1HX-14147-00-00
Pilot Screw Set (Ref #10)
10
Part #12R-14105-00-00
CAP (Ref #11)
11
Part #3F9-14118-00-00
Spring, Pilot Adjusting (Ref #12)
12
Part #1HX-14933-00-00
Starter Set (Ref #13)
13
Part #3DM-1410A-10-00
Needle Valve Set (Ref #14)
14
Part #3CF-14107-10-00
BOLT (Ref #15)
15
Part #1FN-14565-00-00
Штифт плавающий (Ref #16)
16
Part #353-14186-00-00
. FLOAT (Ref #17)
17
Part #1HX-14985-00-00
Валик (Ref #18)
18
Part #256-14997-00-00
Jet, main (Ref #19)
19
Part #1HX-14231-31-00
Жиклерпроводник (Ref #20)
20
Part #22F-14142-17-00
Throttle Screw Set (Ref #21)
21
Part #1HX-14103-00-00
Rod set (Ref #22)
22
Part #3DM-14504-01-00
Заглушка дренажная (Ref #23)
23
Part #12R-14191-00-00
Screw, Pan Head (Ref #24)
24
Part #98580-04014-00
Screw, Pan Head (Ref #25)
25
Part #98517-04012-00
Pipe (Ref #26)
26
Part #50H-14987-00-00
DIAPHRAGM ASSY (Ref #27)
27
Part #3BG-14940-00-00
Распылитель главный (Ref #28)
28
Part #3DM-14141-30-00
CLAMP (Ref #29)
29
Part #3XV-14243-00-00
-
7620-14231-22-00
Jet, Main (110)
1Replaced by 620-14231-22-A0 Доступно: Нет в наличии
-
2498501-04014-00
Screw, Pan Head
2Replaced by 98580-04014-00 Доступно: Нет в наличии
-
2598501-04012-00
Screw, Pan Head
4Replaced by 98517-04012-00 Доступно: Нет в наличии
