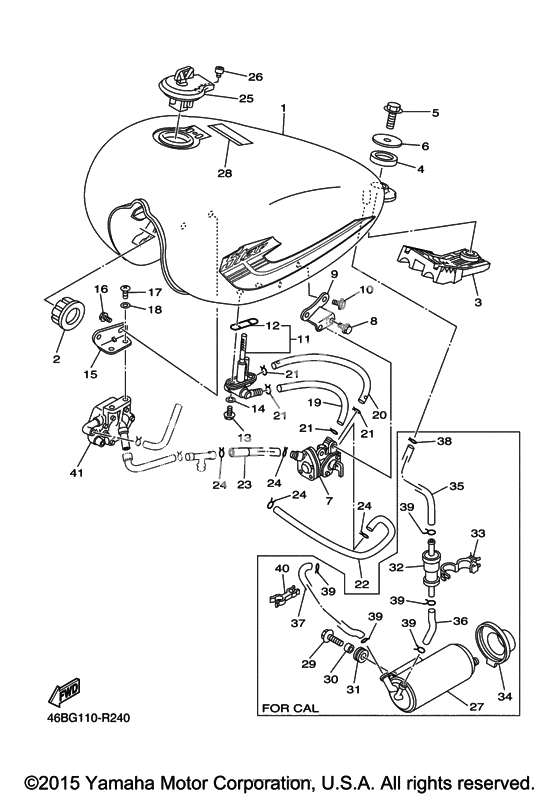

Топливный бак
Топливный бак
Fuel Tank Comp (Ref #1)
1
Part #3BG-Y2410-02-X7
Fuel Tank Comp (Ref #1)
1
Part #3BG-Y2410-02-X6
Fuel Tank Comp (Ref #1)
1
Part #3LS-Y2410-T3-W3
Fuel Tank Comp (Ref #1)
1
Part #3LS-Y2410-T3-W2
Дэмпфер соединения (Ref #2)
2
Part #4H7-24181-00-00
Дэмпфер соединения (Ref #3)
3
Part #2UJ-24182-00-00
Дэмпфер соединения (Ref #4)
4
Part #42X-24183-00-00
BOLT (Ref #5)
5
Part #95817-08030-00
Washer, Plate (Ref #6)
6
Part #90201-08569-00
Fuel Cock Assy 1 (Ref #7)
7
Part #2UJ-24500-10-00
Болт (Ref #8)
8
Part #95024-06010-00
Bracket, Fuel Cock (Ref #9)
9
Part #2UJ-24544-01-00
FILTER ASSY (Ref #11)
11
Part #2UJ-24560-10-00
Прокладка (Ref #12)
12
Part #4X8-24512-10-00
BOLT (Ref #13)
13
Part #90149-06011-00
Washer, Plate (Ref #14)
14
Part #902-02051-87-00
BRACKET, FUEL PUMP (Ref #15)
15
Part #2UJ-24491-01-00
Screw, Pan Head (Ref #17)
17
Part #98517-06012-00
Washer, Plate (Ref #18)
18
Part #92907-06600-00
Hose (Ref #19)
19
Part #904-45110-57-00
Hose (Ref #20)
20
Part #904-45110-58-00
Pipe 2 (Ref #22)
22
Part #2UJ-24312-10-00
Pipe 3 (Ref #23)
23
Part #2UJ-24313-00-00
Cap Assy (Ref #25)
25
Part #20K-24602-10-00
Cap assy (Ref #25)
25
Part #4X7-24602-10-00
BOLT (Ref #26)
26
Part #91317-05010-00
Canister Assembly (Ref #27)
27
Part #3BG-24170-00-00
Наклейка предупредительная (Ref #28)
28
Part #1TP-2118K-A1-00
Screw, With Washer (Ref #29)
29
Part #90119-06118-00
Втулка (Ref #30)
30
Part #90387-0600V-00
GROMMET (Ref #31)
31
Part #90480-14329-00
Клапан (Ref #32)
32
Part #5PX-24180-00-00
CLAMP (Ref #33)
33
Part #90464-15192-00
Крышка картера 2 (Ref #34)
34
Part #999-99999-99-00
Pipe 10 (Ref #35)
35
Part #3BG-24321-10-00
Pipe 11 (Ref #36)
36
Part #3BG-24322-10-00
Pipe 12 (Ref #37)
37
Part #3BG-24323-10-00
CLIP (Ref #38)
38
Part #90467-090A2-00
CLAMP (Ref #40)
40
Part #90464-16119-00
Fuel Pump Assy (Ref #41)
41
Part #3DM-13910-01-00
-
1798507-06012-00
Screw, Pan Head
2Replaced by 98517-06012-00 Доступно: Нет в наличии
-
342JU-2419E-00-00
Cover, canister
1Replaced by 999-99999-99-00 Доступно: Нет в наличии
