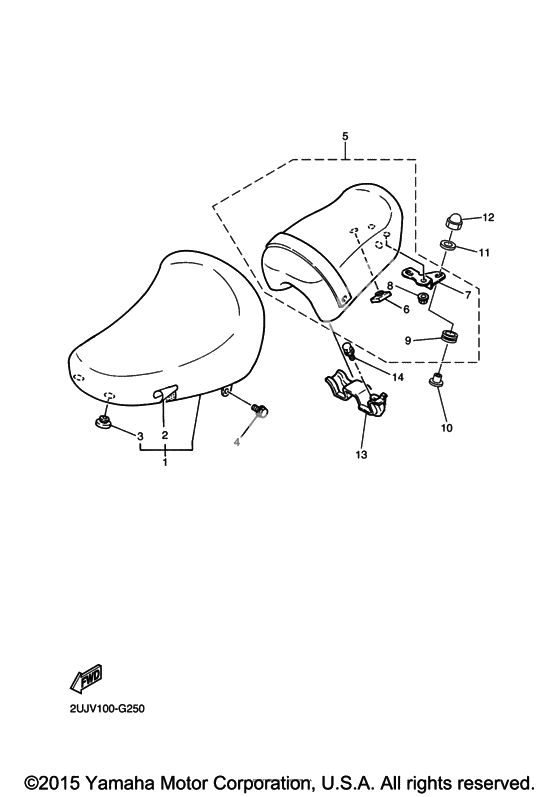

Сиденье
Сиденье
Одноместное сиденье (Ref #1)
1
Part #2UJ-24710-00-00
Крышка сидения черная (Ref #2)
2
Part #2UJ-24731-00-00
Damper, seat (Ref #3)
3
Part #18A-24724-00-00
BOLT (Ref #4)
4
Part #95817-06016-00
Tandem Seat Assy (Ref #5)
5
Part #2UJ-24750-10-00
Damper, seat (Ref #6)
6
Part #509-24724-00-00
Bracket, Seat Lever2 (Ref #7)
7
Part #2UJ-2475J-00-00
Nut, flange (Ref #8)
8
Part #95707-06500-00
GROMMET (Ref #9)
9
Part #5YS-24742-00-00
Collar, 1 (Ref #10)
10
Part #5YS-2471N-00-00
Washer, Plate (Ref #11)
11
Part #90201-08042-00
Гайка корончатая (Ref #12)
12
Part #90176-08001-00
Bracket, Seat Lever 1 (Ref #13)
13
Part #2UJ-2475H-00-00
BOLT (Ref #14)
14
Part #95027-06012-00
