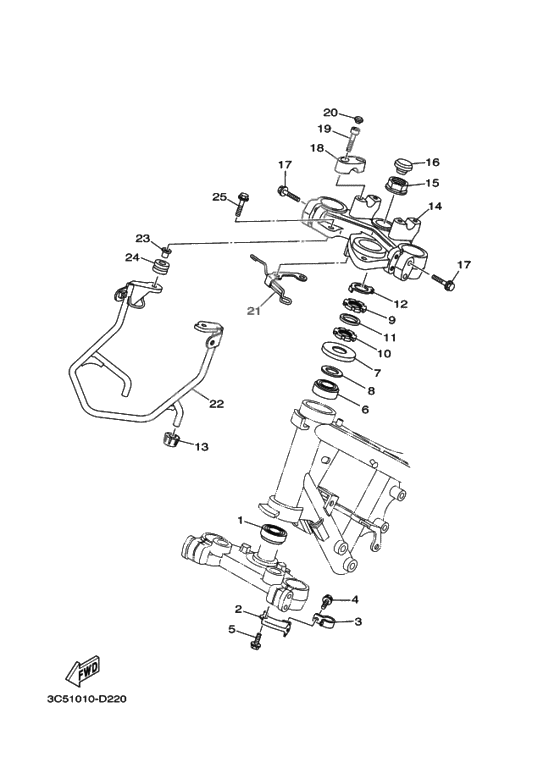

Steering
Steering
BEARING (Ref #1)
1
Part #93332-00079-00
Holder, Brake Hose 1 (Ref #2)
2
Part #3C5-25875-00-00
Holder, Brake Hose 2 (Ref #3)
3
Part #3C5-25876-00-00
BOLT (Ref #4)
4
Part #95027-06010-00
BOLT (Ref #5)
5
Part #95817-06012-00
Крышка 1 (Ref #7)
7
Part #1J7-23415-00-00
Washer, Plate (Ref #8)
8
Part #90201-256K5-00
Nut, flange (Ref #9)
9
Part #901-79258-11-00
Nut, flange (Ref #10)
10
Part #90179-25003-00
Nut, flange (Ref #10)
10
Part #901-79250-04-00
Washer, Plate (Ref #11)
11
Part #90202-26142-00
Washer, special (Ref #12)
12
Part #3YF-23418-00-00
Виброгаситель (Ref #13)
13
Part #3C5-23426-00-00
Crown, Handle (Ref #14)
14
Part #3C5-23435-00-00
Nut, flange (Ref #15)
15
Part #90179-22007-00
CAP (Ref #16)
16
Part #5HP-2319U-00-00
BOLT (Ref #17)
17
Part #95024-08040-00
BOLT (Ref #17)
17
Part #95024-08040-00
BOLT (Ref #17)
17
Part #95024-08040-00
BOLT (Ref #17)
17
Part #95024-08040-00
Holder, Handle Upper (Ref #18)
18
Part #4H7-23441-01-P5
Болт (Ref #19)
19
Part #91317-08030-00
Заглушка болта (Ref #20)
20
Part #90338-06004-00
Крепеж (Ref #21)
21
Part #3C5-2317E-01-00
Pipe, Arm (Ref #22)
22
Part #3C5-23348-00-00
COLLAR (Ref #23)
23
Part #90387-07391-00
Втулка демпфирующая (Ref #24)
24
Part #90480-14011-00
BOLT (Ref #25)
25
Part #95027-06040-00
