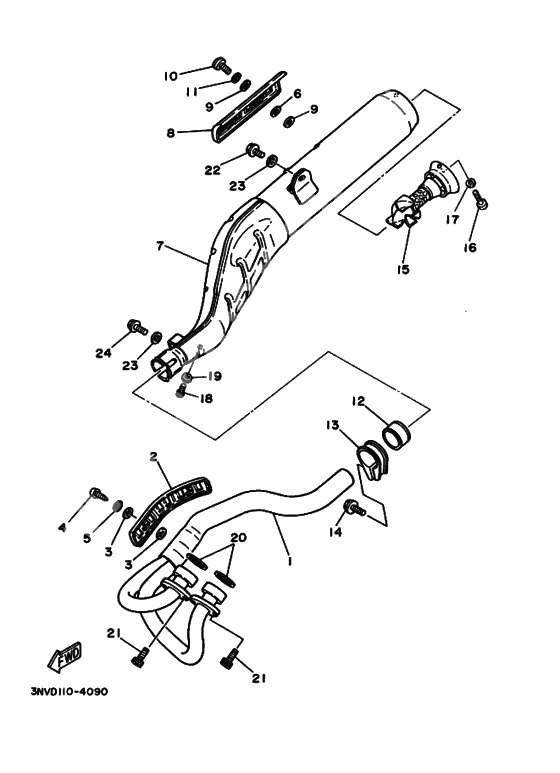

Exhaust
Exhaust
Pipe, Exhaust 1 (Ref #1)
1
Part #57R-14611-00-00
Protector Exhaust (Ref #2)
2
Part #55V-14628-00-00
Шайба протекторная (Ref #3)
3
Part #4BD-14766-00-00
Шайба протекторная (Ref #3)
3
Part #4BD-14766-00-00
Шайба протекторная (Ref #3)
3
Part #4BD-14766-00-00
Шайба протекторная (Ref #3)
3
Part #4BD-14766-00-00
Screw, Tapping (Ref #4)
4
Part #90164-06017-00
Washer, Plate (Ref #5)
5
Part #90206-06090-00
Washer, Plate (Ref #6)
6
Part #92907-06600-00
Muffler 1 (Ref #7)
7
Part #2GK-14711-01-00
Protector, Muffler 2 (Ref #8)
8
Part #55V-14728-00-00
Винт, бандаж (Ref #10)
10
Part #989-07060-10-00
Gasket, muffler (Ref #12)
12
Part #4EL-14714-00-00
301 Band, Muffler (Ref #13)
13
Part #30X-14715-00-00
BOLT (Ref #14)
14
Part #95027-08040-00
Труба выхлопная (Ref #15)
15
Part #42U-14752-00-00
Screw, Pan Head (Ref #16)
16
Part #98507-06010-00
BOLT (Ref #18)
18
Part #90105-06069-00
Болт (Ref #18)
18
Part #95817-06008-00
Прокладка трубы (Ref #20)
20
Part #4BR-14613-00-00
BOLT (Ref #21)
21
Part #91317-06025-00
BOLT (Ref #21)
21
Part #91317-06025-00
BOLT (Ref #21)
21
Part #91317-06025-00
BOLT (Ref #21)
21
Part #91317-06025-00
BOLT (Ref #22)
22
Part #95817-08014-00
Washer, Plate (Ref #23)
23
Part #90201-08877-00
Washer, Plate (Ref #23)
23
Part #90201-08877-00
Washer, Plate (Ref #23)
23
Part #90201-08877-00
Washer, Plate (Ref #23)
23
Part #90201-08877-00
BOLT (Ref #24)
24
Part #958-17080-20-00
