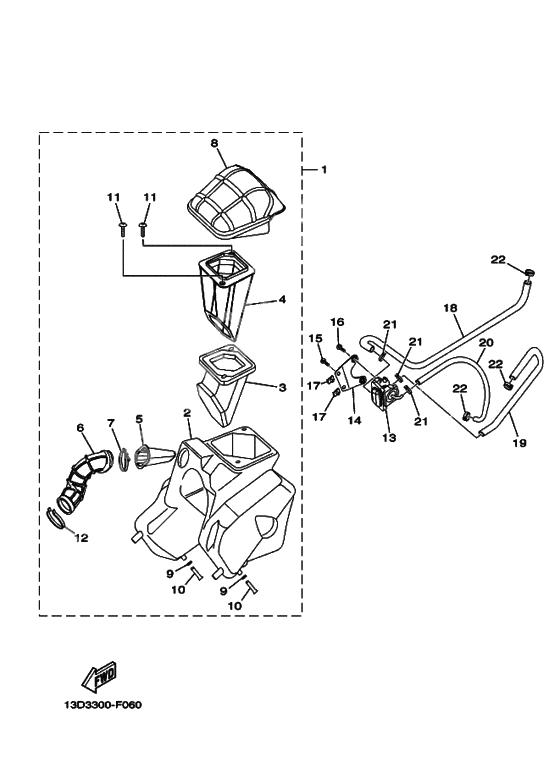

Intake
Intake
Air cleaner assy (Ref #1)
1
Part #13D-E4410-10-00
Case, Air Cleaner 1 (Ref #2)
2
Part #3D6-E4411-00-00
Фильтр воздушный (Ref #3)
3
Part #3D6-E4451-00-00
Стакан очистителя (Ref #4)
4
Part #13D-E4412-00-00
Крышка картера 2 (Ref #5)
5
Part #999-99999-99-00
Соединение воздушного очистителя 1 (Ref #6)
6
Part #3D6-E4453-00-00
BAND (Ref #7)
7
Part #3D6-E4455-00-00
Cover 1 (Ref #8)
8
Part #13D-E4417-00-00
Хомут (Ref #9)
9
Part #1D4-F1823-00-00
Хомут (Ref #9)
9
Part #1D4-F1823-00-00
Хомут (Ref #9)
9
Part #1D4-F1823-00-00
Хомут (Ref #9)
9
Part #1D4-F1823-00-00
Трубка (Ref #10)
10
Part #1D4-E4419-00-00
Трубка (Ref #10)
10
Part #1D4-E4419-00-00
Трубка (Ref #10)
10
Part #1D4-E4419-00-00
Трубка (Ref #10)
10
Part #1D4-E4419-00-00
Болт (Ref #11)
11
Part #1D4-F1712-00-00
Болт (Ref #11)
11
Part #1D4-F1712-00-00
Болт (Ref #11)
11
Part #1D4-F1712-00-00
Болт (Ref #11)
11
Part #1D4-F1712-00-00
Clamp 2 (Ref #12)
12
Part #13D-E2492-00-00
Air Induction System Assy (Ref #13)
13
Part #3D6-E4803-01-00
Болт (Ref #15)
15
Part #13D-F4176-00-00
Болт (Ref #16)
16
Part #13C-E2623-00-00
Гайка (Ref #17)
17
Part #1D4-F1791-00-00
Гайка (Ref #17)
17
Part #1D4-F1791-00-00
Гайка (Ref #17)
17
Part #1D4-F1791-00-00
Гайка (Ref #17)
17
Part #1D4-F1791-00-00
Hose, Bend 1 (Ref #18)
18
Part #13D-E4881-00-00
Hose, Bend 2 (Ref #19)
19
Part #13D-E4882-00-00
Hose, Bend 3 (Ref #20)
20
Part #13D-E4883-00-00
