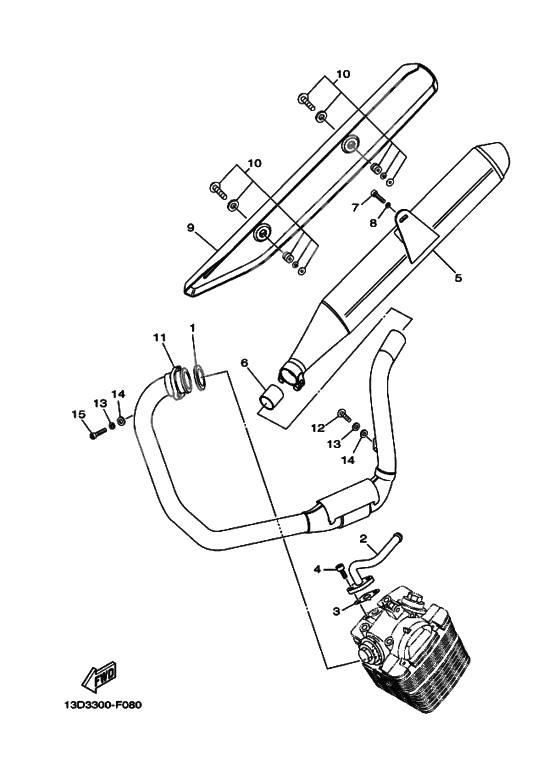

Exhaust
Exhaust
Прокладка трубы (Ref #1)
1
Part #5VL-E4613-00-00
Pipe 2 (Ref #2)
2
Part #5VL-E4872-00-00
Washer, Needle Valve (Ref #3)
3
Part #5VL-E4815-00-00
BOLT (Ref #4)
4
Part #9131M-06016-00
Muffler Assy 1 (Ref #5)
5
Part #13D-E4710-00-00
Gasket, muffler (Ref #6)
6
Part #13D-E4714-00-00
Болт (Ref #7)
7
Part #1D4-F1722-00-00
Шайба (Ref #8)
8
Part #1D4-E4617-00-00
Protector, Muffler 1 (Ref #9)
9
Part #3D6-E4718-00-00
BOLT (Ref #10)
10
Part #13D-E4767-00-00
BOLT (Ref #10)
10
Part #13D-E4767-00-00
BOLT (Ref #10)
10
Part #13D-E4767-00-00
BOLT (Ref #10)
10
Part #13D-E4767-00-00
Pipe, Exhaust 1 (Ref #11)
11
Part #13D-E4611-10-00
Болт (Ref #12)
12
Part #3D6-E4777-00-00
Washer, Plate (Ref #13)
13
Part #3D6-E4617-00-00
Washer, Plate (Ref #13)
13
Part #3D6-E4617-00-00
Washer, Plate (Ref #13)
13
Part #3D6-E4617-00-00
Washer, Plate (Ref #13)
13
Part #3D6-E4617-00-00
Шайба (Ref #14)
14
Part #1D4-E2456-00-00
Шайба (Ref #14)
14
Part #1D4-E2456-00-00
Шайба (Ref #14)
14
Part #1D4-E2456-00-00
Шайба (Ref #14)
14
Part #1D4-E2456-00-00
BOLT (Ref #15)
15
Part #3D6-E4592-00-00
