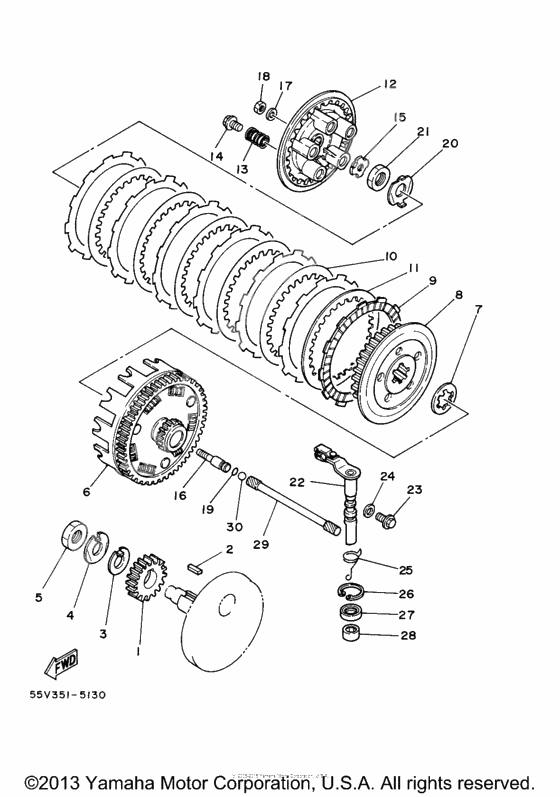

Сцепление
Сцепление
GEAR, PRIMARY DRIVE (Ref #1)
1
Part #30X-16111-00-00
Key, Straight (Ref #2)
2
Part #90282-07057-00
Шайба, стопорная (Ref #3)
3
Part #90215-16156-00
Шайба, стопорная (Ref #4)
4
Part #90215-16222-00
Nut, flange (Ref #5)
5
Part #90170-16343-00
PRIMARY DRIVEN GEAR COMP. (Ref #6)
6
Part #55V-16150-00-00
Plate, Thrust 1 (Ref #7)
7
Part #30X-16154-00-00
Ботинок муфты (Ref #8)
8
Part #55V-16371-00-00
Пластина фрикционная (Ref #9)
9
Part #5Y1-16331-01-00
Plate, Clutch 2 (T1.6) (Ref #10)
10
Part #168-16325-00-00
Пластина (T=2.0) (Ref #11)
11
Part #3J2-16324-00-00
Крышка сцепления. (Ref #12)
12
Part #5Y1-16351-00-00
Пружина компрессора (Ref #13)
13
Part #90501-23391-00
Screw, Pan Head With (Ref #14)
14
Part #90159-06010-00
Plate, Push (Ref #15)
15
Part #1W1-16358-01-00
301 Rod, Push 1 (Ref #16)
16
Part #55V-16356-00-00
Washer, Plate (Ref #17)
17
Part #92907-06200-00
Nut, flange (Ref #18)
18
Part #95317-06600-00
Кольцо уплотнительное (Ref #19)
19
Part #93210-06632-00
Шайба, стопорная (Ref #20)
20
Part #90215-16289-00
Nut, flange (Ref #21)
21
Part #90170-16326-00
Рукоятка нажима (Ref #22)
22
Part #55V-16380-00-00
BOLT (Ref #23)
23
Part #90149-08067-00
Washer, Needle Valve (Ref #24)
24
Part #90201-08087-00
Spring, Pilot Adjusting (Ref #25)
25
Part #90508-14433-00
Circlip (Ref #26)
26
Part #93420-28055-00
Oil seal (Ref #27)
27
Part #93102-14209-00
BEARING (Ref #28)
28
Part #93315-31449-00
Rod, Push 2 (Ref #29)
29
Part #30X-16357-00-00
Шарик (Ref #30)
30
Part #93511-32027-00
-
1993210-06422-00
Washer, Needle Valve
1Replaced by 93210-06632-00 Доступно: Нет в наличии
-
2490430-08119-00
Washer, Needle Valve
1Replaced by 90201-08087-00 Доступно: Нет в наличии
