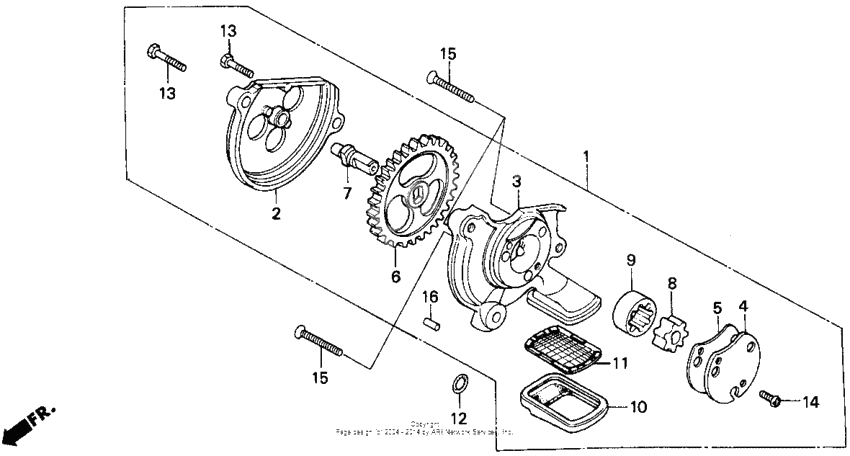

Oil pump
Oil pump
Насос масляный (Ref #1)
1
Part #15100-KB4-671
Прокладка насоса (Ref #5)
5
Part #15126-399-000
Gear a (40t) (Ref #6)
6
Part #15131-KB4-670
Rotor, oil pump inner (Ref #8)
8
Part #15331-881-000
Rotor, oil pump outer (Ref #9)
9
Part #15332-881-000
Holder, screen (Ref #10)
10
Part #15421-399-000
Screen, oil filter (Ref #11)
11
Part #15422-399-000
Прокладка (Ref #12)
12
Part #91319-323-000
Bolt, hex., 5x20 (Ref #13)
13
Part #92101-05020-0A
Bolt, hex., 5x20 (Ref #13)
13
Part #92101-05020-0A
Bolt, hex., 5x20 (Ref #13)
13
Part #92101-05020-0A
Bolt, hex., 5x20 (Ref #13)
13
Part #92101-05020-0A
Болт (Ref #14)
14
Part #93500-050-100-A
Screw, flat (6x32) (Ref #15)
15
Part #93600-060320A
Screw, flat (6x32) (Ref #15)
15
Part #93600-060320A
Screw, flat (6x32) (Ref #15)
15
Part #93600-060320A
Screw, flat (6x32) (Ref #15)
15
Part #93600-060320A
Pin c (Ref #16)
16
Part #94303-04065
