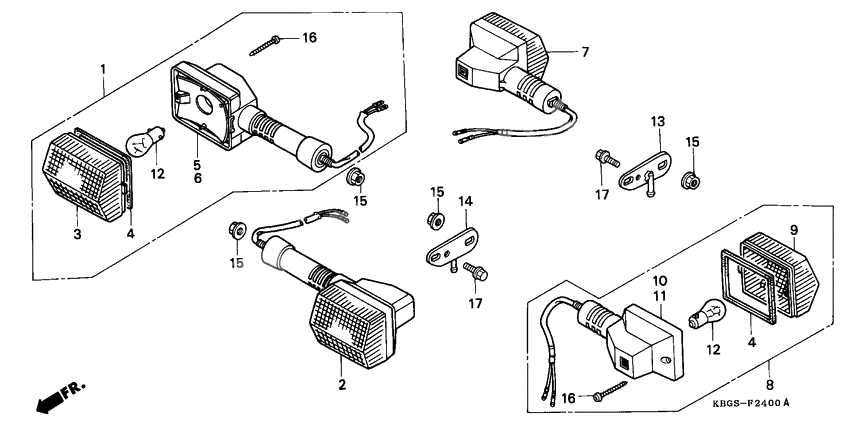

Winker
Winker
Winker set,r.fr.( (Ref #1)
1
Part #33300-KC1-900
Winker set,l.fr.( (Ref #2)
2
Part #33350-KC1-900
Lens, turn signal (Ref #3)
3
Part #33402-MGW-305
Прокладка (Ref #4)
4
Part #33407-MG2-003
Прокладка (Ref #4)
4
Part #33407-MG2-003
Прокладка (Ref #4)
4
Part #33407-MG2-003
Прокладка (Ref #4)
4
Part #33407-MG2-003
Winker set,r,rr (Ref #7)
7
Part #33500-KBG-600
Winker set,l,rr (Ref #8)
8
Part #33550-KBG-600
Lens, turn signal (Ref #9)
9
Part #33602-MG2-601
Bulb (Ref #12)
12
Part #34908-634-611
Bulb (Ref #12)
12
Part #34908-634-611
Bulb (Ref #12)
12
Part #34908-634-611
Bulb (Ref #12)
12
Part #34908-634-611
Stay, r. rr. (Ref #13)
13
Part #50186-KBG-000
Stay, l. rr. (Ref #14)
14
Part #50187-KBG-000
Screw, tap (3x25) (Ref #16)
16
Part #91901-MG2-003
Screw, tap (3x25) (Ref #16)
16
Part #91901-MG2-003
Screw, tap (3x25) (Ref #16)
16
Part #91901-MG2-003
Screw, tap (3x25) (Ref #16)
16
Part #91901-MG2-003
Bolt, flange, 8x14 (Ref #17)
17
Part #95701-0801407
Bolt, flange, 8x14 (Ref #17)
17
Part #95701-0801407
Bolt, flange, 8x14 (Ref #17)
17
Part #95701-0801407
Bolt, flange, 8x14 (Ref #17)
17
Part #95701-0801407
